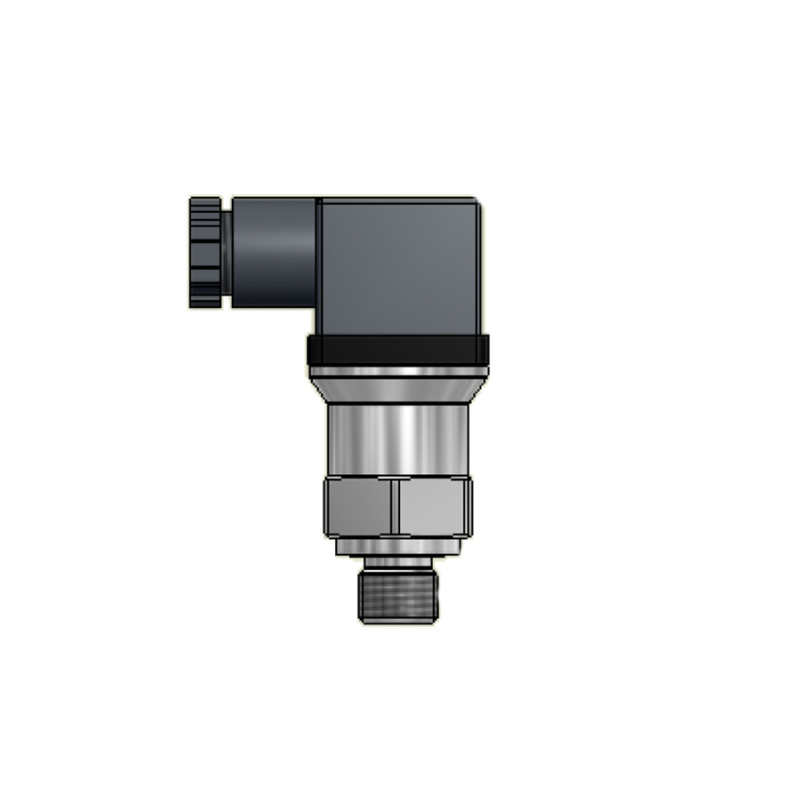

X2 Electronic pressure switches

PLEASE ASK FOR PRICE!

Working temperature: -20°C ÷ +80°C
Switching frequency: 120 cycles/min
Setting point: to be defined before the order
Switching accuracy: ± 1,5% of end of scale at 20°C
Hysteresis adjustable value: to be defined before the order


Weight: 0,2 Kg
Mechanical life: 5x106 cycles at 20°C
Electric features:
- Maximum load: 0,5 A
- Exchange contacts (Common, NO and NC) – SPDT
- Electric connection according to DIN43650, M2 and M3
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- Medium consumption: 20 mA
Body: made in in AISI 316 L, key 24mm
Wetted parts: in stainless steel AISI 316 L with ceramic sensor and
integral seal in NBR
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
