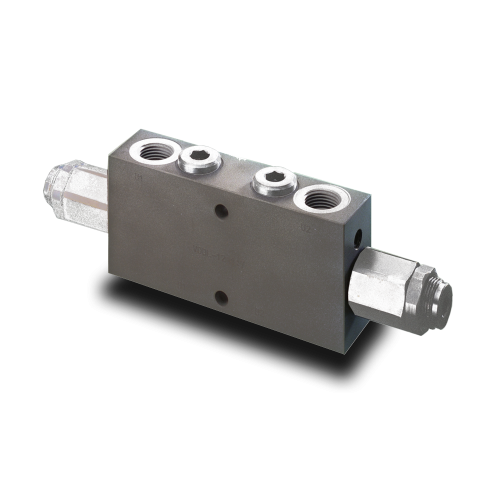

VODL Counterbalance valve
- Brand: Walvoil
- Product Code: VODL
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Double acting, load sensitive
The counterbalance valves lock the actuator position in one direction and free flow in the opposite direction. The opening is managed by a pilot pressure signal and a setted pressure.
Flow l/min - (US gpm): Up to 180 (47,6)
Max. Pressure bar - (psi): Up to 350 (5100)
Ports: G3/8 - G1/2 - G3/4 - G1"
Downloads
DATA SHEET
CATALOG
