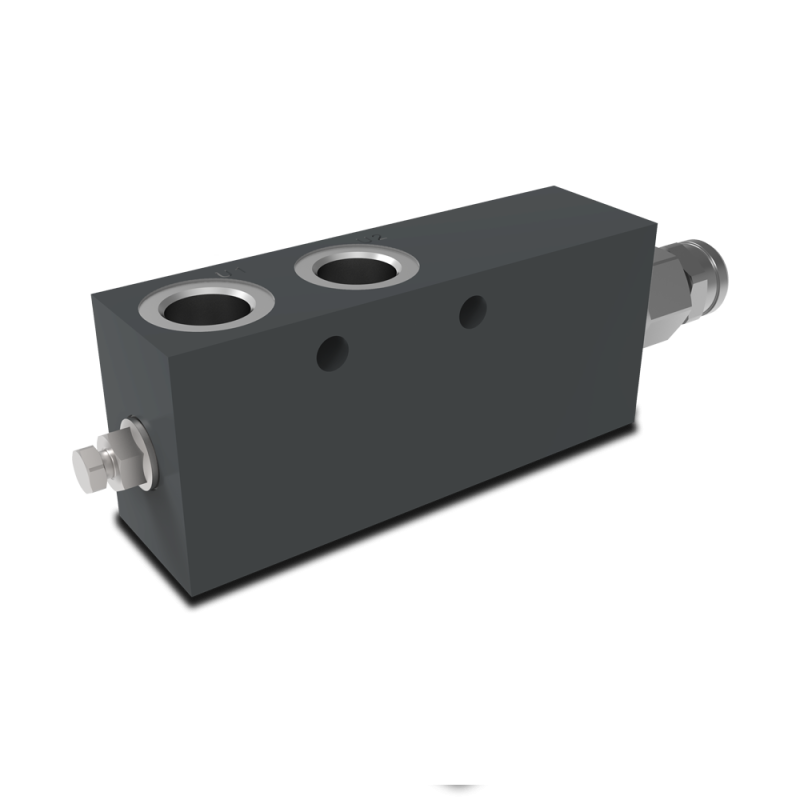

VOSL/N1516 Counterbalance valve
- Brand: Walvoil
- Product Code: VOSL/N1516
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!

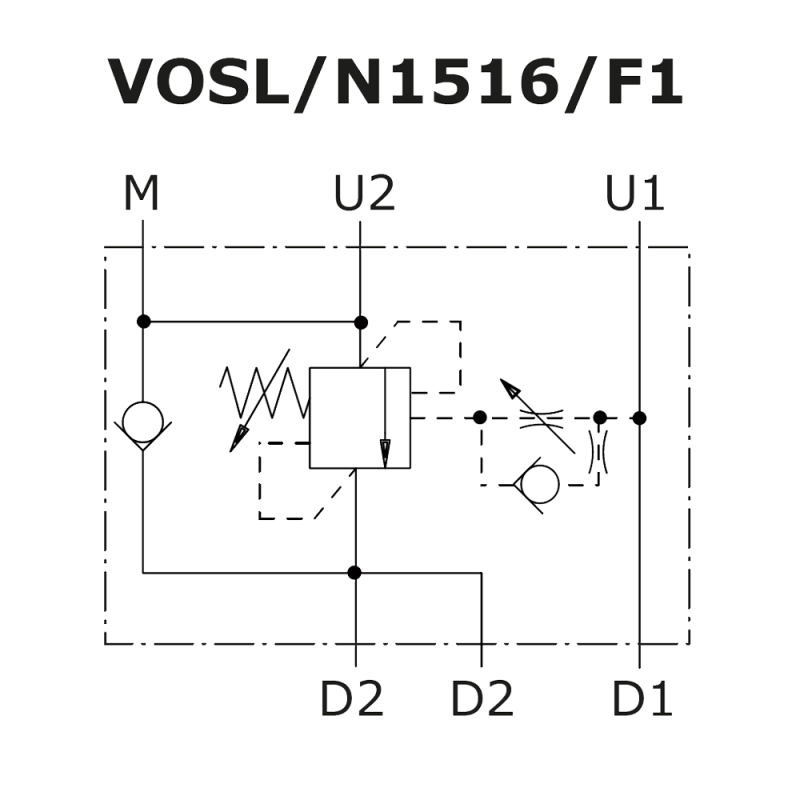

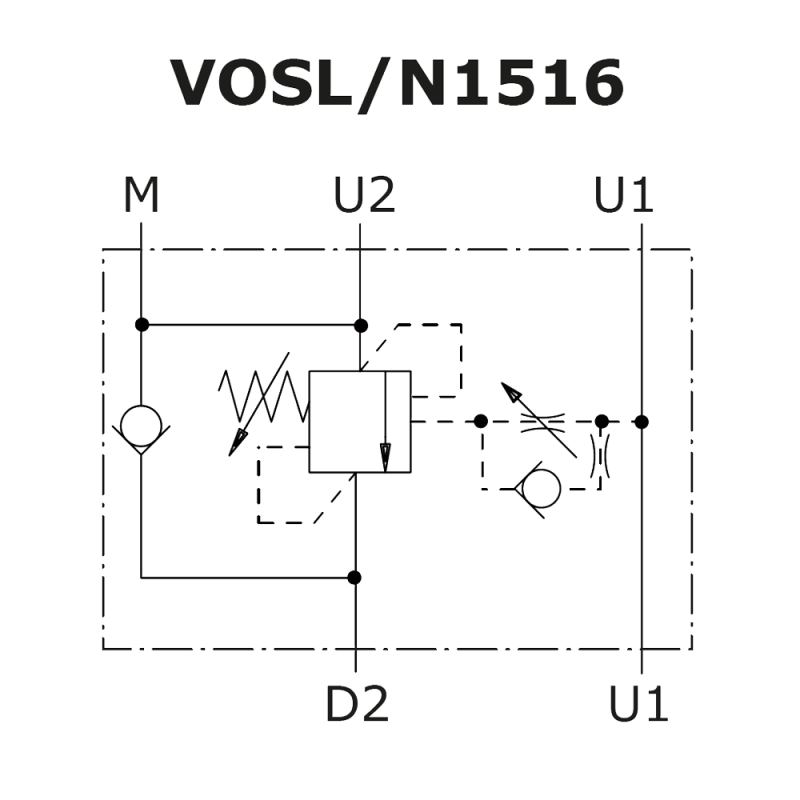

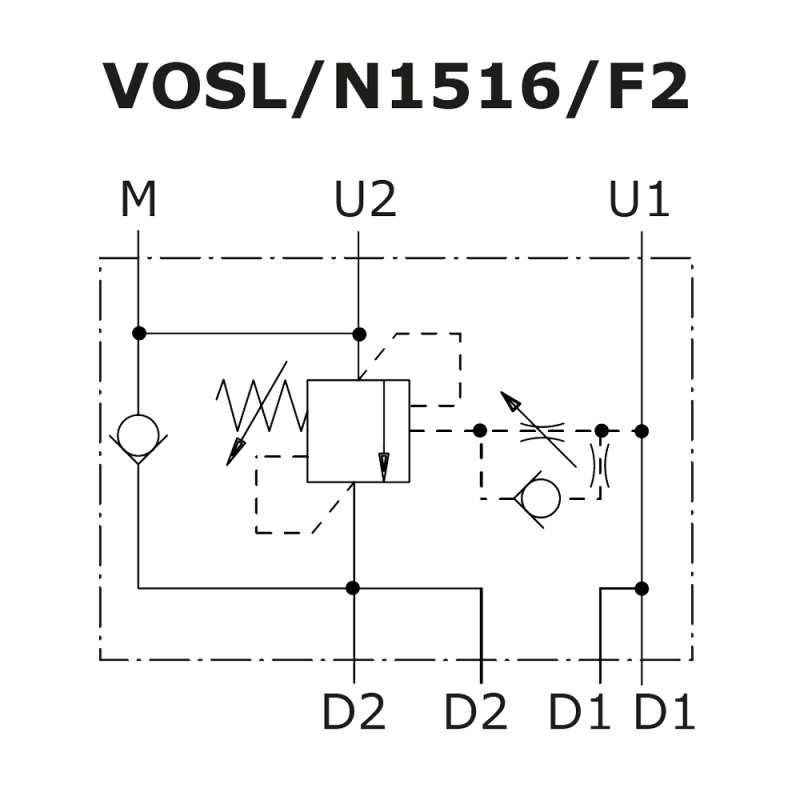

Single acting, load sensitive, F1 and F2 flange option
The counterbalance valves lock the actuator position in one direction and free flow in the opposite direction. The opening is managed by a pilot pressure signal and a setted pressure.
Flow l/min - (US gpm): 160 (42,3)
Max. Pressure bar - (psi): Up to 400 (5800)
Ports: G1/2 - G3/4 - SAE 10 - SAE 12
