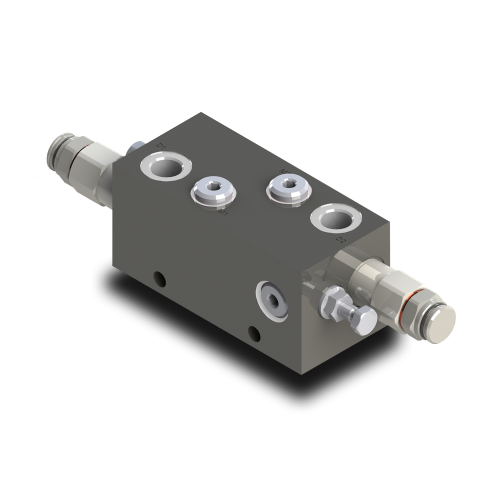

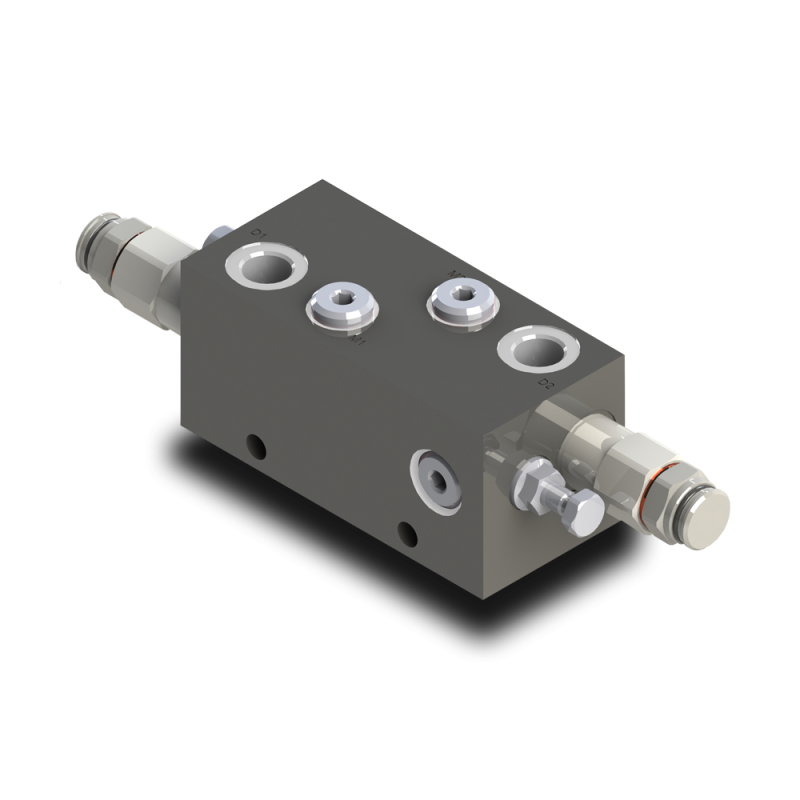

VODL/V1116/CS Counterbalance valve
- Brand: Walvoil
- Product Code: VODL/V1116/CS
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Double acting, vented, F2 flange option
The counterbalance valves lock the actuator position in one direction and free flow in the opposite direction. The opening is managed by a pilot pressure signal and a setted pressure.
Flow l/min - (US gpm): 60 (15,8)
Max. Pressure bar - (psi): 350 (5100)
Ports: G3/8 - G1/2 - SAE 06 - SAE 08 - SAE 10
