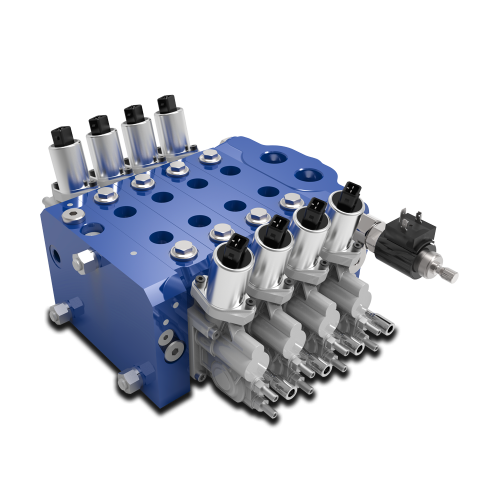

EX38 Full Flow Sharing sectional valve

PLEASE ASK FOR PRICE!

Full Flow Sharing sectional valve for wide range of applications

EX38 is ideal for applications such as Truck Mounted Cranes, Foresry Trailers, Skip and Hook Loaders, Mini-excavators, Tractors and Agricultural Machines.

- Right or Left inlet configurations

- Full Flow or LS signal pressure relief valves and solenoid unloader valve

- Pre-compensated or Post-compensated working sections configurations

- Working section with or without port valve arrangement

- Full Flow or LS signal pressure relief valves on each section

- Mechanical, hydraulic, pneumatic and proportional electro-hydraulic controls

- Optional spool position sensors

- EX Series valves are stackable with each other.

Nominal Flow Rating on working ports l/min - (US gpm): 100 (26)
Nominal Flow Rating l/min - (US gpm): 150 (40)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 10
Pitch mm (in): 38 (1,50)
