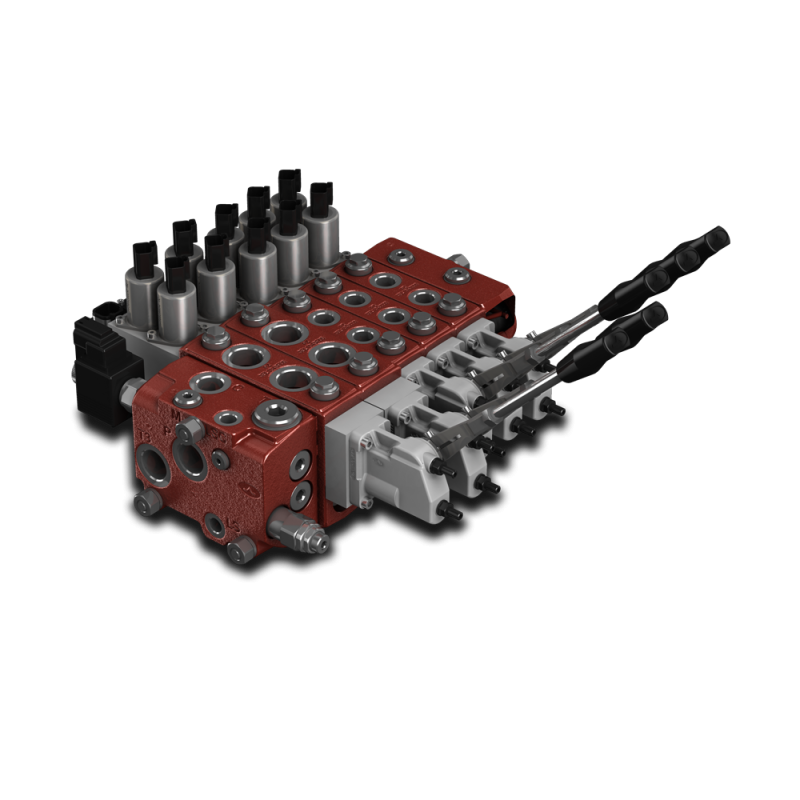

DPX100 Full Flow Sharing Valve

PLEASE ASK FOR PRICE!

Full Flow Sharing Valve for a wide range of applications

Medium range directional valve of the DPX series and the most versatile and complete. Highly configurable and versatile for applications such as Miniexcavators, Aerial platform, Truck Mounted Cranes, Telehandlers, Agricultural and Forestry machines.

- Valve model for high pressure applications (HP), inspheroidal graphite cast iron

- Valve configurations with high flow sections (HF)

- Special inlet sections designed for steering applications

- Inlet sections with or without by-pass valve

- Manual, hydraulic and proportional electro-hydraulic controls

- Optional spool position sensors

- Synergy with the Walvoil electronic systems range

Nominal Flow Rating on working ports l/min - (US gpm): 90 (24) - 120 (32)
Nominal Flow Rating l/min - (US gpm): > 120 (32)
Max. Pressure bar - (psi): up to 420 (6100)
Number of Sections: 12
Pitch mm (in): 36 (1,42)
