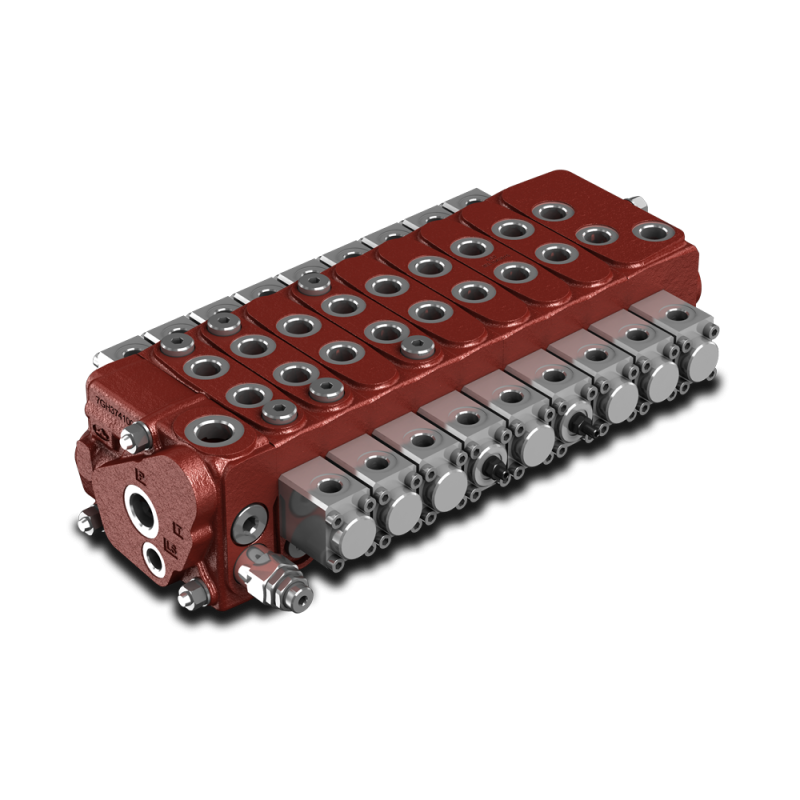

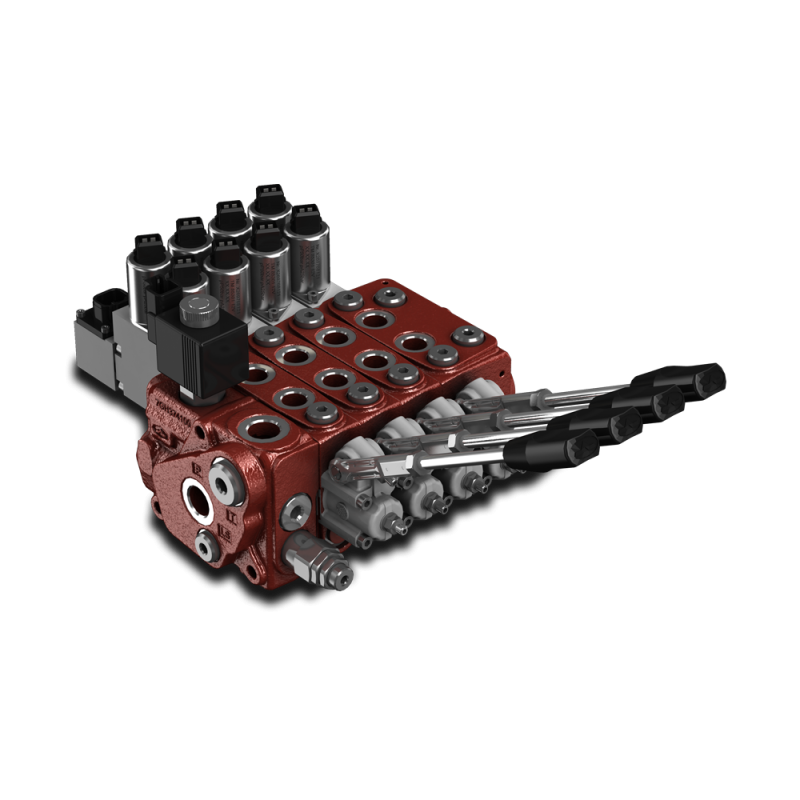

DPX050 Small and compact valve

PLEASE ASK FOR PRICE!

Small and compact valve with Full Flow Sharing tecnology

The DPX050 valve shows the advantages of Full Flow Sharing technology in a small and compact directional valve. Size and versatility suitable for applications such as small size Miniexcavators, Aerial platform, Truck Mounted Cranes, Agricultural and Forestry machines.

- Inlet sections with or without by-pass valve

- Manual, hydraulic and proportional electro-hydraulic controls

- Optional spool position sensors

- Last section works as outlet

- Synergy with the Walvoil electronic system range

Nominal Flow Rating on working ports l/min - (US gpm): 50 (13)
Nominal Flow Rating l/min - (US gpm): 80 (21)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 12
Pitch mm (in): 32 (1,26)
