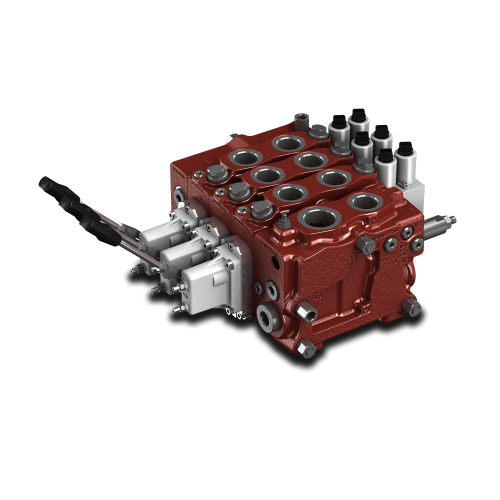

DPC200 Load Sensing sectional valve

PLEASE ASK FOR PRICE!

Load Sensing sectional valve for high flow application

DPC200 is the largest directional valve in the Load Sensing DPC series. Typical applications are Drilling Rigs, Wheel Loaders, Cranes on marine platform. - Special inlet section with Shut-off and Copy Spool with dumper configuration - Manual, hydraulic and proportional electro-hydraulic controls - Optional spool position sensors - Stackable with DPC130 working sections - Synergy with the Walvoil electronic system range

Nominal Flow Rating on working ports l/min - (US gpm): 200 (53)
Nominal Flow Rating l/min - (US gpm): 260 (69)
Max. Pressure bar - (psi): 420 (6100)
Number of Sections: 10
Pitch mm (in): 53 (2,09)
