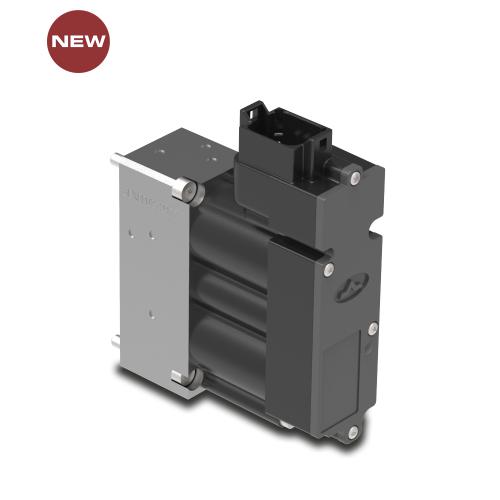

NG5 Electro-hydraulic CAN bus Control Module

PLEASE ASK FOR PRICE!

Electro-hydraulic CAN bus Control Module

Walvoil presents the new NG5 module, for the CAN bus electrohydraulic control of directional control valve
The module, designed following according to OEMs’ most rigorous reliability standards, is available for the families of pre and post-compensated Load Sensing valves: DPX Series, EX Series, DPC Series.

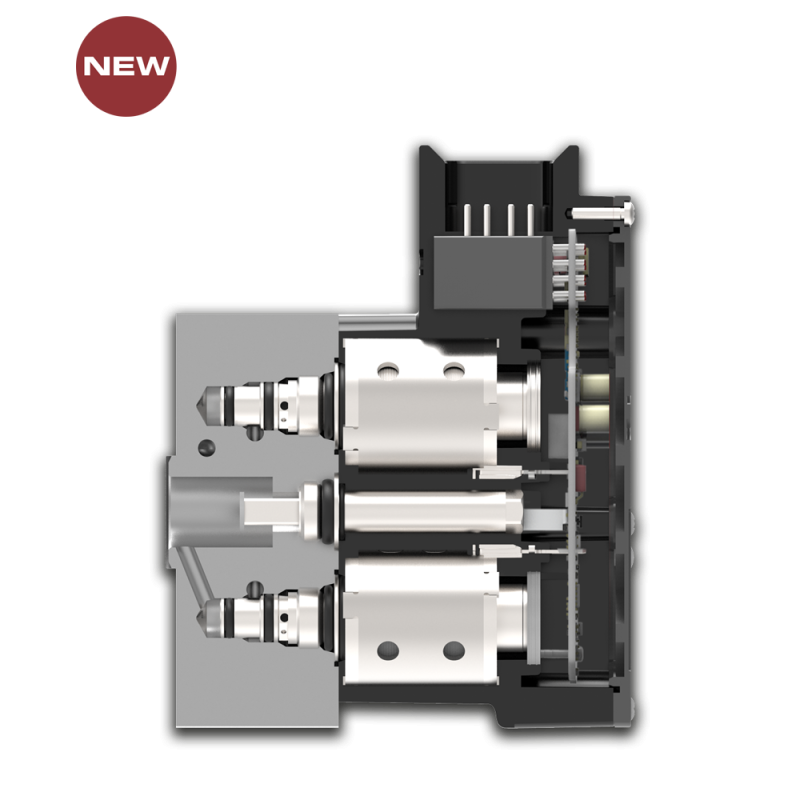

The integrated electronics and contactless position sensor can guarantee the accurate motion of the valve spool, with low hysteresis and fast response.
The electronic board is designed with Hardware Category 2 and is capable to reach of PLd / SIL 2.

Max inlet pressure – bar (psi):: 50
No load current absorption - mA: 200
EMC compatibility: according to ISO 14982 / 13766
Max. current absorption (logic) mA: 1500
Max back pressure – bar (psi):: 5 bar (72.5)
CAN bus protocols: SAE J1939, CANopen
