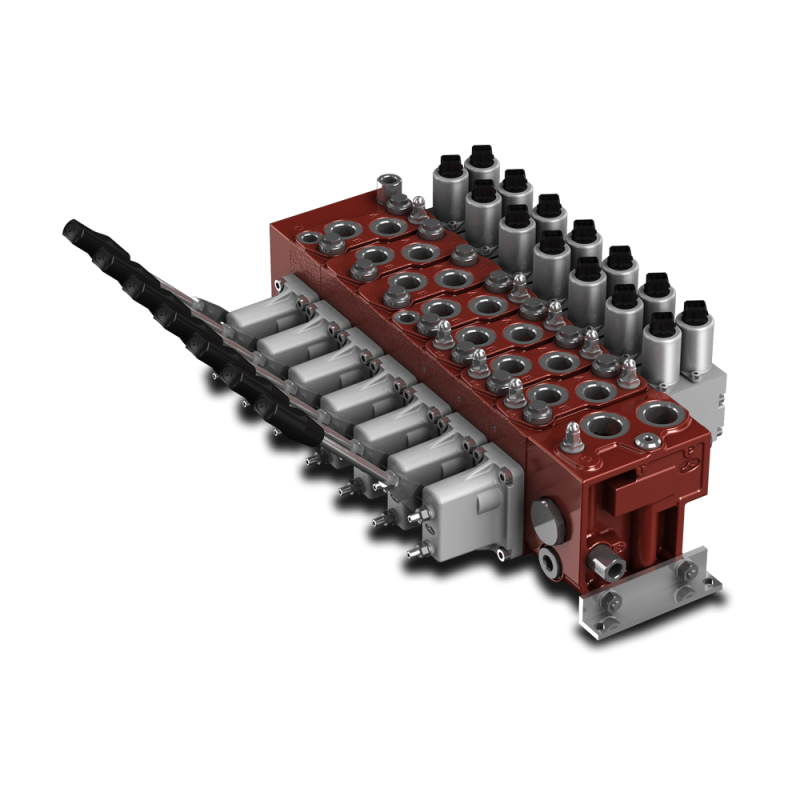

DPC130 Load Sensing sectional valve

PLEASE ASK FOR PRICE!

Load Sensing sectional valve

DPC130 is a Load Sensing valve suitable for circuits with variable displacement pump (closed center) or fixed displacement pump (open center).
Normally used for mobile machinery: Agricultural Machines, All Terrain Cranes, Drilling Rigs and Garbage Compactors.
- Special inlet section with Shut-off and Copy Spool with dumper configuration
- Manual, hydraulic and proportional electro-hydraulic controls
- Optional spool position sensors
- Synergy with the Walvoil electronic system range

Nominal Flow Rating on working ports l/min - (US gpm): 100 (26)
Max. Pressure bar - (psi): 315 (4560)
Number of Sections: 10
Pitch mm (in): 48 (1,89)
