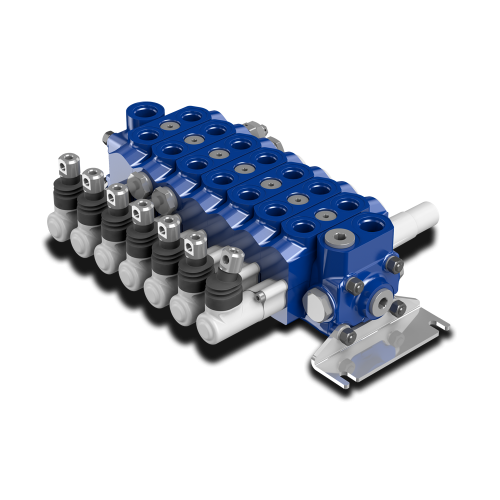

DVS10 Small, compact and flexible sectional valve

PLEASE ASK FOR PRICE!

Specifically designed for mini Skid Steer Loaders and Mini Dumper applications, the DVS10 valve is fitted with different components normally assembled on the machine. The Valve shows very exact control features, smooth and precise in operation, with compact and light design. Several configurations and solutions are available.

- Manual, direct electric, hydraulic, electro-hydraulic, pneumatic and electro-pneumatic controls.

Nominal Flow Rating l/min - (US gpm): 45 (12)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 12
Pitch mm (in): 35 (1,38)
