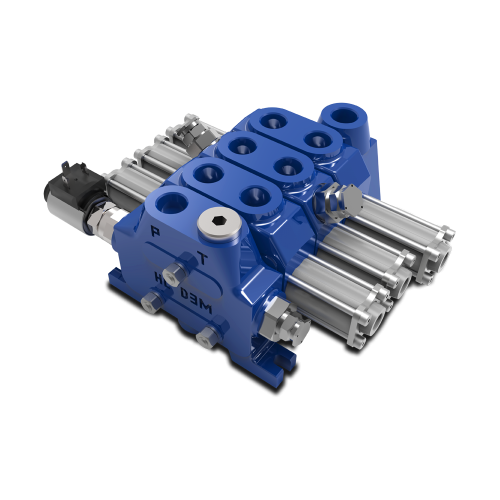

D3M Small, compact and flexible sectional valve

PLEASE ASK FOR PRICE!

Several integrated valve features in addition to countless configuration options make the D3M valve highly flexible and easily suitable to the widest application range. Mini-excavators (up to 3,5 ton.), Forestry Machines, Aerial Platforms, Backhoe Loaders, Compact Wheel Loaders, Backhoes, Drill Rigs, Garbage Compactors, Skip and Hook Loaders, Fork Lifts are the main applications.

- Special inlet section for parallel valve connection (suitable for Forestry applications)

- Manual, direct electric, hydraulic, pneumatic, electro-hydraulic and electro-pneumatic controls

- Port valves on working sections.

Nominal Flow Rating l/min - (US gpm): 55 (15)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 12
Pitch mm (in): 38 (1,50)
