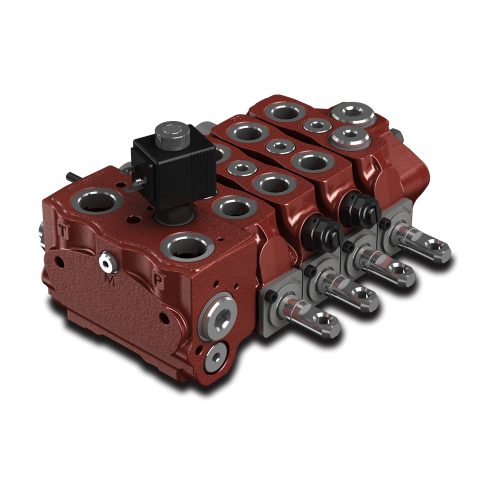

SD8 - DLS8 Compact, versatile and flexible sectional valve

PLEASE ASK FOR PRICE!

The technical features, flow rate and pressure limit make the SD8 valve ideal for different applications, but particularly for Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors. The DLS8 Load Sensing version is used with a manual control kit for vertical and horizontal drilling rigs and for Front-loaders.

- Fitted with a main pressure relief valve and a load check valve on every working section

- Available with parallel, tandem or series circuit

- Optional carry-over port

- A wide range of ports and circuit valves

- Intermediate sections for several types of circuit

- Manual, pneumatic, hydraulic, electro-hydraulic and remote controls with flexible cable spool control kits.

Nominal Flow Rating l/min - (US gpm): SD8: 80 (21): DLS8: 100 (26)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: SD8: 12
Pitch mm (in): 41 (1,61)
