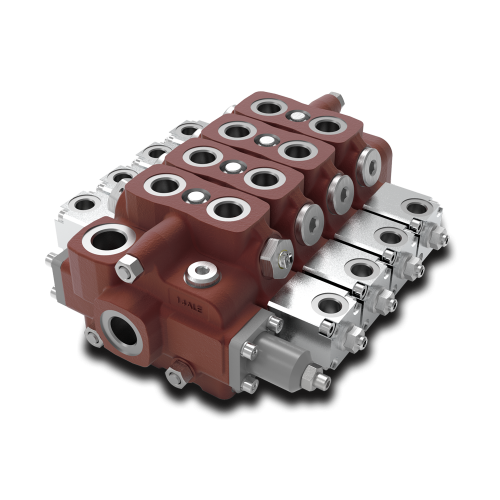

SD6 - DLS7 Small, compact and flexible sectional valve

PLEASE ASK FOR PRICE!

SD6 is the ideal control valve for Truck Mounted Cranes, Boom Mowers, Miniexcavators, Backhoe Loaders small and medium Chipping Machines and Aerial Platforms. The DLS7 Load-Sensing version is assembled and on Aerial Platforms as well as vertical and horizontal Drilling Rigs.

- Type "S" free flow gallery

- Fitted with a main pressure relief valve and a load check valve on every working section

- Available with parallel, tandem or series circuit.

- Optional carry-over port.

- A wide range of ports and circuit valves.

- Manual, pneumatic, hydraulic, electro-hydraulic, and remote with flexible cable controls

Nominal Flow Rating l/min - (US gpm): SD6: 45 (12) DLS7: 60 (16)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: SD6: 12
Pitch mm (in): 38 (1,50)
