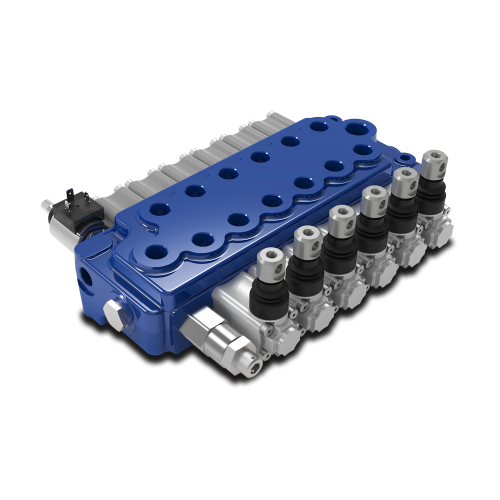

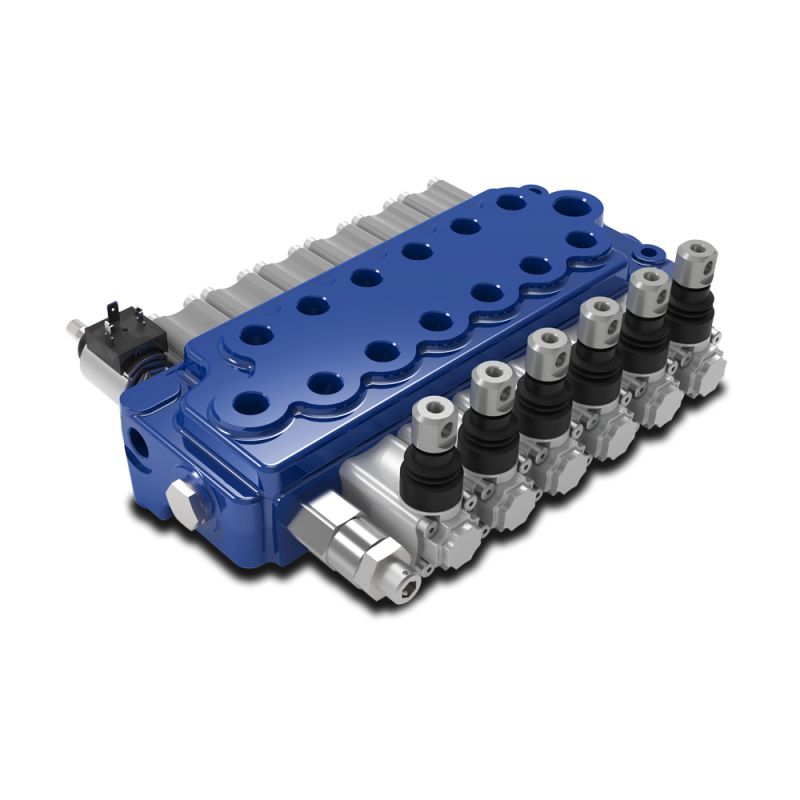

M50 Multipurpose monoblock valve

PLEASE ASK FOR PRICE!

Thanks to the symmetric body design, the M50 valve can be easily transformed from right inlet to left inlet configuration and vice versa. The valve is available with manual, cable, hydraulic, pneumatic, electrohydraulic and electropneumatic con-trols.

- Dump valve on request

- Special configuration for stabilizers applications

- Available M50 special body design with auxiliary valves on each section.

The perfect solution for several agricultural applications, Earth Moving Machines, Material Handling and Industrial Vehicles.

Nominal Flow Rating l/min - (US gpm): 50 (13)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 7
Pitch mm (in): 35 (1,38)
