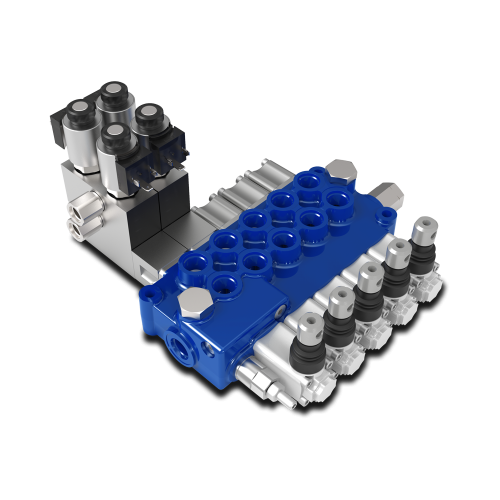

M45 Multipurpose monoblock valve

PLEASE ASK FOR PRICE!

Thanks to a wide range of options and solutions, M45 is a very flexible and versatile valve. The valve is available with manual, cable, direct electric, hydraulic, pneumatic, electro-hydraulic and electro-pneumatic controls. The Floating function is available on standard body. Regenerative functions are available with special spools and bodies.

- Special configuration for stabilizers applications.

Nominal Flow Rating l/min - (US gpm): 45 (12)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 6
Pitch mm (in): 35 (1,38
