SD11 Monoblock Valve | 70 L/min Hydraulic Directional Control Valve

Brand: Walvoil
Product Code: SD11
Availability: In Stock

0.00€
Ex Tax: 0.00€

Available Options

Other Product Code:

SD11/2-P
P0600001
104219001
SD11/1-P
SD11/2-P
SD11/3-P
SD11/4-P
SD11/5-P
SD11/6-P
SD11/2-P(JG3-120)/18L/18L/AET-SAE
SD11/2-P(JG3-120)/18L/18L/AET-PSA-SAE
SD11/2-P (KG3-120) /18L/18L.P3(G3-120)/AET-PSL-SAE
1-P 5KC1417000 Parallel, 1 section
2-P 5KC1427000 Parallel, 2 sections
3-P 5KC1447000 Parallel, 3 sections
4-P 5KC1477000 Parallel, 4 sections
5-P 5KC1517000 Parallel, 5 sections
6-P 5KC1547000 Parallel, 6 sections
SV XTAP526340 Valve blanking plug
(KG2-80) 5KIT110112 Range 20 to 63 bar / 290 to 900 psi standard setting 40 bar / 580 psi
(KG3-120) 5KIT110113 Range 63 to 200 bar / 900 to 2900 psi taratura standard 120 bar / 1750 psi
(KG4-220) 5KIT110114 Range 180 to 315 bar / 2600 to 4600 psi standard setting 220 bar / 3200 psi
(YG1-80) 3XCAR110211 Range 63 to 125 bar / 900 to 1800 psi standard setting 80 bar / 1150 psi
(YG2-125) 3XCAR110212 Range100 to 160 bar / 1450 to 2300 psi tandard setting 125 bar / 1800 psi
(YG3-175) 3XCAR110213 Range 125 to 250 / 1800 to 3600 psi standard setting 175 bar / 2500 psi
(YG4-220) 3XCAR110214 Range 200 to 315 / 2900 to 4600 psi standard setting 220 bar / 3200 psi
(XG-125) X006211120 Range 25 to 315 bar / 360 to 4600 psi standard setting 120 bar / 1750 psi
1 3CU1410130 Double acting, 3 positions, with A and B closed in neutral position
1A 3CU1421130 Double acting, 3 positions, with A open to tank in neutral position
1B 3CU1422130 Double acting, 3 positions, with B open to tank in neutral position
2 3CU1425130 Double acting, 3 positions, with A and B open to tank in neutral position
3 3CU1431130 Single acting on A, 3 positions, B plugged requires G3/8 plug (see part I )
4 3CU1435130 Single acting on B, 3 positions, A plugged requires G3/8 plug (see part I )
5 3CU1442100 Double acting, 4 positions, floating circuit in 4th position with spool in
5VR 3CU1443610 Double acting, 4 positions, floating circuit in 4th position with spool out, with check valve
8 3CU1462110 Doppio effetto, 4 pos., rigenerativo in 4a posizione con cursore a entrare
8F 3CU1461100 Double acting, 4 positions, regenerative circuit in 4th position with spool in
1(9A) 3CU1410300 Double acting, 3 positions, with A and B closed in neutral pos: for 9A positioner
1(11A) 3CU1410320 Double acting, 3 positions, with A and B closed in neutral pos: for 11A positioner
L 5LEV110000 Standard lever box
LF1 5LEV110101 Lever box with adjustable flow limiter
LS 5LEV110020 Waterproof lever box
LB 5LEV310000 Steel lever
LEB 5LEV610000 Safety lever box
SLP 5COP110000 Without lever box, with dust--proof plate
TQ 5TEL110110 CD flexible cable connection
LCB 5CLO211100 Joystick lever for 2 sections operation
AET 3XTAP732201 Open center plug
AEK 3XTAP532450 Closed center plug
AE 3XGIU532660* SAE10 power beyond sleeve
AET--EL 5CAR411312 With 12VDC electric control unloader valve; normally open circuit
5CAR411314 As previous 24VDC
PSL 3XTAP826160 SAE10 plug for upper inlet and outlet (nr.2 request): side ports open
PSA 3XTAP826160 SAE10 plug for side inlet and outlet (nr.2 request): upper ports open
8 5V08110000 With spring return in neutral position
8D 5V08110200 With spring return in neutral position and pin with M6 female thread for dual control
8D1 5V08110210 With spring return in neutral position and pin with ∅ 8mm (0.32in) radial hole
8D2 5V08110220 With spring return in neutral position and pin with M8 male thread for dual control
8TL 5V08110310 Come tipo 8, per comando a cavo flessibile
8F2 5V08110101 Come tipo 8 con limitatore di corsa regolabile
8M3 5V08110400 Come tipo 8 con perno uscente per comando microinterruttore in posizione 1 e 2
19 5V19110000 2 positions, with spring return in neutral position from position 1
20 5V19110000 2 positions, with spring return in neutral position from position 2
11 5V11110000 Detent in positions neutral, 1 and 2
12 5V12110000 Detent in positions 1 and 2
15 5V15110000 2 positions, detent in positions 1 and neutral
16 5V16110000 2 positions, detent in positions 2 and neutral
21 5V21110000 Aggancio in pos. 2 e ritorno a molla in pos. 1
9B 5V09110000 With detent in position 1 and spring return in neutral position
10B 5V09110000 With detent in position 2 and spring return in neutral position
11B 5V11210000 Detent in positions 1 and 2 and spring return in neutral position
8MG3 5V08110050 As type 8 and microswitch in positions 1 and 2
8K 5V08710112 As type 8 and 12 VDC solenoid lock device
5V08710124 As previous, 24 VDC
8P 5V08110701 ON/OFF pneumatic kit
8PG 5V08111706 Proportional pneumatic kit
8EPG3 5V08111725 12 VDC ON/OFF electropneumatic kit
5V08111726 24 VDC ON/OFF electropneumatic kit
8ID3 5V08111801 Proportional hydraulic kit
8EI3 5V08110350 12 VDC ON/OFF electrohydraulic kit
5V08110351 24 VDC ON/OFF electrohydraulic kit
9A 5V09511000 With detent in position 1, automatic release in neutral position
11A 5V11511000 With detent in position 1 and 2, automatic release in neutral position
13B 5V13111000 4 pos. with spring return in neutral pos. and detent in 4th pos.: for spool 5
13C 5V13211000 4 pos. with spring return in neutral pos. and detent in 4th pos.: for spool 5VR
8MCCR 5V08210021 Spring return in neutral position, with reduced spool stroke: for spool 8F
13FZ1 5V13611100 4 pos. with spring return in neutral pos. and 8. Inlet and outlet selection * page 6 detent in 2nd pos.: for spool 8
SAE8 3XTAP822150 For single acting spools type 3 and 4
AL01/M10x200 170012020 For lever L: height 200 mm / 7.87 in
AL08/M12x250 170013125 For joystick LCB: height 250mm/ 9.84 in
VMD10 (KG3-120)
VMD10 (YG3-175)
VMP150 (XG-120)
5V08210000
5V08410000
XPER318500
5V08110050
5V08110070
5V08110060
5V08110053
5V08110073
5V08110063
5V08708112
5V08708413
5V08708612
5V08708124
5V08708424
5V08708624
2X4300012
2X4300014
YSOL300014
2X4300024
2X4300026
YSOL300024
5V08111725
5V08111727
5V08111726
5V08111728
2XB1010121100
2XB1010120000
2XB1010241100
2XB1010240000
5V08110350
5V08110372
5V08110374
5V08110376
5V08110351
5V08110373
5V08110375
5V08110377
2XB1400121100
2XB1400121200
2XB1400121210
2XB1400120400
2XB1400241100
2XB1400241200
2XB1400241210
2XB1400240400
KE1S0 5KE1S00070 For one section
KE2S0 5KE2S00470 For 2 sections
KE3S0 5KE3S00470 For 3 sections
KE4S0 5KE4S00470 For 4 sections
KE5S0 5KE5S00470 For 5 sections
KE6S0 5KE6S00470 For 6 sections
SD11/2-P(JG3-120)/18ED3L/18ED3L/AET-KE2S0-24VDC-SAE
3XGIU532490
KE1R3 5KE1R30470 For one section
KE2R3 5KE2R30470 For 2 sections
KE3R3 5KE3R30470 For 3 sections
KE4R3 5KE4R30470 For 4 sections
KE5R3 5KE5R30470 For 5 sections
KE6R3 5KE6R30470 For 6 sections
SD11/2-P(JG3-120)/18EI3L/18EI3L/VRC-KE2R3-24VDC-SAE
3XGIU532490
3CU1410300
3CU1410320
1-P 5KC1417141 Parallel, 1 section
2-P 5KC1427101 Parallel, 2 sectionS
1C 3CU1410400 Double acting, 3 positions, with A and B closed in neutral position
2C 3CU1425400 Double acting, 3 positions, with A and B open to tank in neutral position
8IM 5IDR210700 Bilateral proportional hydraulic control with spring return
AET 3XTAP732201 Tappo per centro aperto
AEK 3XTAP532450 Tappo per centro chiuso
AE 3XGIU532660* SAE10 power beyond sleeve
PSL 3XTAP826160 SAE10 plug for upper inlet and outlet (nr.2 request): side ports open
PSA 3XTAP826160 SAE10 plug for side inlet and outlet (nr.2 request)
SD11/1-P (KG3-120)/1 R SLP.P3(G3-120)/AET-PSL-SAE
SD11/2-P(KG3-120)/18L/18L/AE-SAE
SD11/2-P(KG3-120)/18L/18L/AEK-SAE
SD11/2-P(KG3-120)/18L/18L/AET-EL-12VDC-SAE
VS(G3-100) 3XCAR511113 RangP1(G3-100) 604007000* Block with valve on port A
P2(G3-100) 604007000* Block with valve on port B
P3(G3-100) 604007100* Block with valve on ports A and B
P(G2-60) 5CAR211112 Single valve: range 80 to 120 bar / 1150 to1750 psi, std setting 80 bar / 1150 psi
P(G3-100) 5CAR211113 Single valve: range 120 to 180 bar / 1750 to 2600 psi, std setting 100 bar / 1450 psi
P(G4-200) 5CAR211113 Single valve: range 160 to 315 bar / 2300 to 4600 psi, std setting 200 bar / 2900 psi
PT XTAP526430 Valve blanking plug (for configuration P1,0 a 170 bar / 1150 to 2450 psi standard setting 100 bar / 1450 psi
BPS1 604003005* Block with valve on port A
BPS2 604003005* Block with valve on port B
BPS3 604003105* Block with valves on ports A and B
BPS XCAR616200 Single valve
BPT XTAP330360 BPS valves blanking plug
Kit V 5CO2840100 Mounting block kit
T 5TAP528320 Valve blanking plug
VC 5KIT410100 Anti-cavitation valve
VP(G2) 5KIT210212 Range 50 to 100 bar / 725 to 1450 psi standard setting 60 bar / 870 psi
VP(G3) 5KIT210213 Range 80 to 250 bar / 1150 to 3600 psi standard setting 100 bar / 1450 psi
VP(G4) 5KIT210214 Range 160 to 315 bar / 2300 to 4600 psi standard setting 200 bar / 2900 psi
VU(G2) 5KIT310112 Range 50 to 100 bar / 725 to 1450 psi standard setting 60 bar / 870 psi
VU(G3) 5KIT310113 ange 80 to 200 bar / 1150 to 2900 psi standard setting 100 bar / 1450 psi
VU(G4) 5KIT310114 Range 160 to 280 bar / 2300 to 4100 psi standard setting 200 bar / 2900 psi
VS (D3-100)
SD11/2-P(KG3-120)/18L/VS(D3-100)/18L/AET-PSA-SAE
P1 (D3-100)
VP1 (G3-100)
VU1 (G3-100)
SD11/1-S
SD11/2-S
SD11/3-S
SD11/4-S
SD11/5-S
SD11/6-S
2X1001020
2X1001010
5CON001
5CON003
5CON005
5CON007
5CON017
5CON0031

Qty

0 reviews / Write a review

Description
Reviews (0)

PLEASE ASK FOR PRICE!

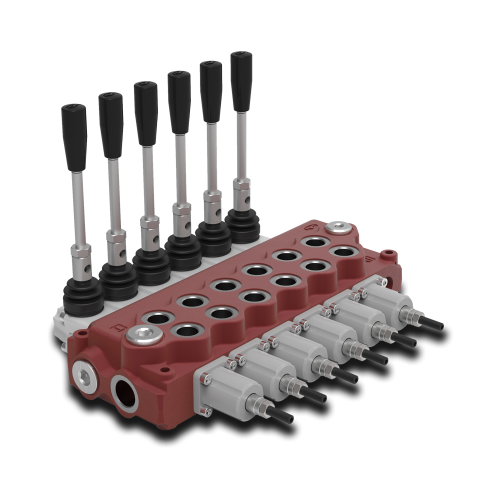

The Walvoil SD11 Monoblock Valve is a compact, heavy-duty hydraulic directional control valve engineered for reliable performance in mobile hydraulic systems. With a nominal flow capacity of 70 L/min and a maximum operating pressure of 315 bar (4600 psi), the SD11 provides precise hydraulic control for demanding applications while ensuring long-term durability.

Designed with a rugged monoblock construction, the SD11 is available in configurations of up to 6 working sections, making it suitable for a wide range of hydraulic circuit layouts. The valve features a Type S free-flow gallery, an integrated load check valve, and supports both parallel and series circuit configurations, providing excellent flexibility for mobile equipment manufacturers and hydraulic system integrators.

The SD11 supports multiple actuation options, including manual, hydraulic, pneumatic, and electro-hydraulic controls, allowing it to meet the requirements of various industrial and mobile machinery. Optional features such as power beyond, interchangeable spools, and different port configurations enable easy customization for specific hydraulic applications.

The Walvoil SD11 is widely used in agricultural equipment, travelling and tilting vehicles, conveyors, truck-mounted cranes, waste compactors, vehicle transporters, and industrial hydraulic systems where dependable directional control and high operating efficiency are essential.

Key Features

Nominal flow rate: 70 L/min
Maximum operating pressure: 315 bar (4600 psi)
Compact and heavy-duty monoblock construction
Available with 1 to 6 working sections
Type S free-flow gallery
Parallel and series hydraulic circuit configurations
Integrated load check valve
Manual, hydraulic, pneumatic, and electro-hydraulic control options
Optional power beyond and interchangeable spool configurations
Ideal for agriculture, cranes, conveyors, waste compactors, transport vehicles, and industrial mobile hydraulic systems.

SD11_Monoblock_Directional_Control_Valve.pdf

Tags: Walvoil, SD11, Monoblock Valve, Hydraulic Valve, Directional Control Valve, Mobile Hydraulics, 70 L/min, 315 Bar, Agriculture, Cranes, Conveyors, Waste Compactors, Industrial Vehicles, Hydraulic Control,
