SDM100 Monoblock Valve | Medium Flow Hydraulic Directional Control Valve

PLEASE ASK FOR PRICE!

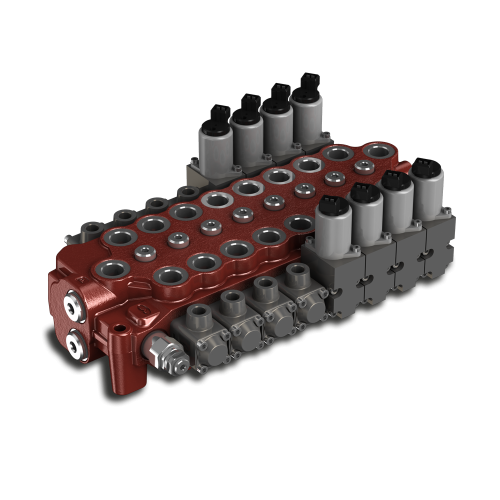

The Walvoil SDM100 Monoblock Valve is a robust, compact hydraulic directional control valve designed for medium-flow mobile hydraulic applications. Engineered to deliver exceptional reliability, it features a 70 L/min nominal flow capacity and supports maximum operating pressures up to 315 bar (4600 psi), making it suitable for demanding hydraulic systems.

Designed with a durable monoblock body, the SDM100 is available in configurations with up to 8 working sections, providing flexibility for a wide range of hydraulic circuit layouts. Its Type Y free-flow gallery, integrated load check valve on each section, and support for both parallel and series circuits ensure smooth, precise, and efficient hydraulic operation.

The valve supports multiple control options, including manual, hydraulic, pneumatic, electric, and electro-hydraulic actuations, with both on/off and proportional control configurations available. Optional features such as anti-cavitation valves, anti-shock valves, power beyond ports, pilot-operated check valves, and unloader solenoid valves make the SDM100 adaptable to complex hydraulic systems.

The Walvoil SDM100 is widely used in agricultural machinery, construction and earth-moving equipment, material handling systems, truck-mounted cranes, lifting platforms, and industrial vehicles, where dependable hydraulic performance and long service life are essential.

Key Features

• Nominal flow rate: 70 L/min
• Maximum operating pressure: 315 bar (4600 psi)
• Compact and heavy-duty monoblock construction
• Available with 1 to 8 working sections
• Type Y free-flow gallery
• Parallel and series hydraulic circuit configurations
• Integrated load check valve on every section

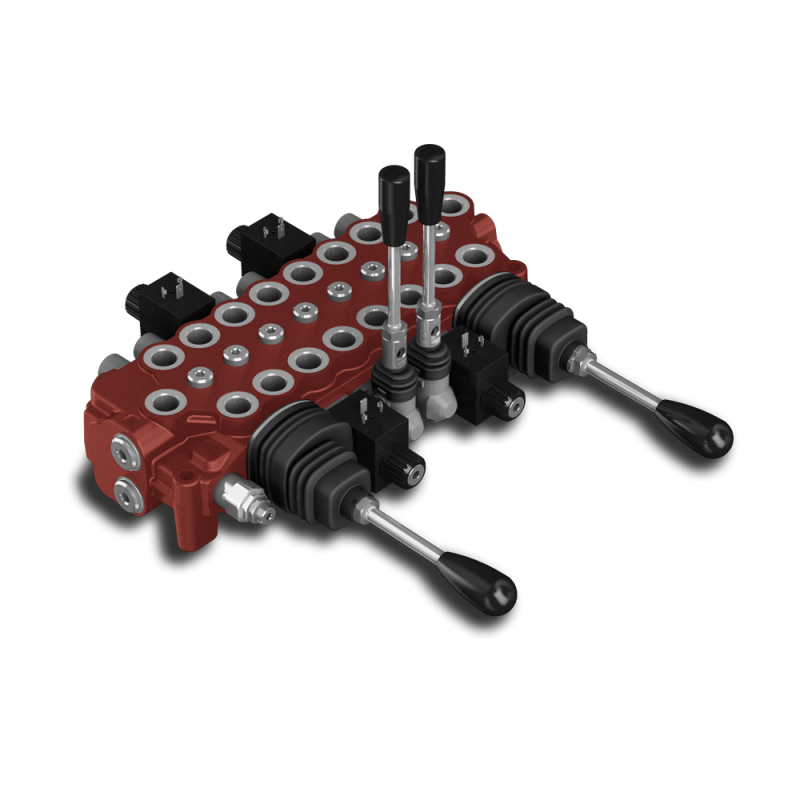

• Manual, hydraulic, pneumatic, electric, and electro-hydraulic control options
• On/off and proportional spool configurations
• Optional anti-shock, anti-cavitation, power beyond, and pilot check valve configurations
• Ideal for agriculture, construction, lifting equipment, material handling, and industrial vehicle hydraulic systems.

SDM100_Monoblock_1_8_Sections_Valve.pdf
