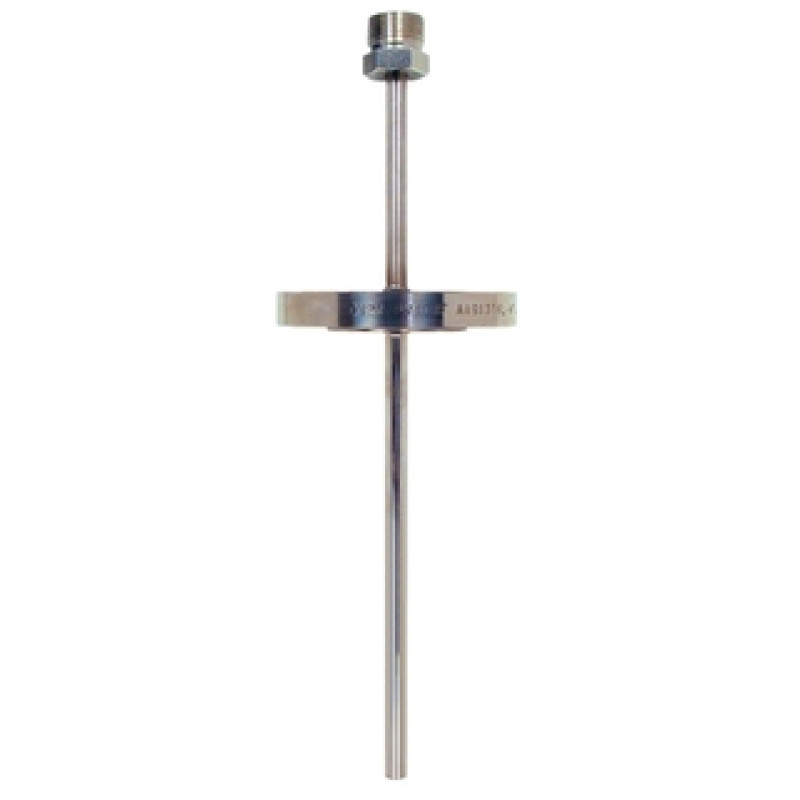

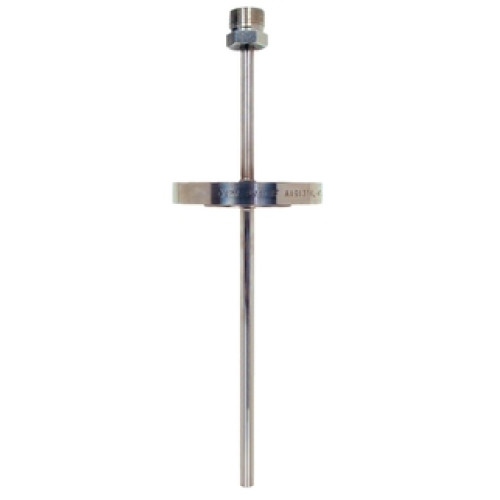

TW13 Protection tube for temperature sensors

Designed for use in processes with heavy thermal and mechanical stresses

Previous: TA13

Next: Thermowell TT131

• Measuring principle

  Fabricated Thermowell

• Characteristic / Application

  metric style
  DIN 43772 Form 2F/3F
  langed process connection
  with neck

• Head connection

  external thread:
  M24 x 1.5
  '1/2" NPT

• Maximum standard immersion length

  4.000 mm (157,48")

• Max. immersion length on request

  10.000 mm (393,7")

• Process connection

  flange:
  DN15 PN40 B1
  DN25 PN40 B1
  DN40 PN40 B1
  DN50 PN40 B1
  ASME 1" 150 RF
  ASME 1" 300 RF
  ASME 1 1/2" 150 RF
  ASME 2" 150 RF
  ASME 2" 300 RF

• Thermowell root diameter

  9 mm (0,35")
  11 mm (0,43")
  12 mm (0,47")
  15 mm (0,59")

• Medium contact material

  1.4404 (316L)
  1.4571 (316Ti)
  2.4816 (Alloy 600)
  2.4819 (Alloy C276)
  PTFE
  PVDF
  Tantal

• Wetted part finishing (Ra)

  < 1.6 µm (63.00 µin)

• Tip shape

  straight
  reduced
  tapered

• Temperature range

  -200...1.100 °C (-328...2.012 °F)

• Max. process pressure (static)

  50 bar (725 psi)

• Max. process pressure at 400 °C

  depends on process connection

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

TW13 protection tubes are important components for temperature measurement points for almost all industrial processes, especially for fine chemicals industries.

• Extension, immersion length and total length can be chosen according to process requirements

• A wide choice of dimensions, materials and process connections is available

• Special versions can be manufactured according to customer requirements
