Designed for use in the fine chemicals industry and generally for almost all industrial processes
Previous: TA10
Next: Thermowell TT131
-
Measuring principle
Fabricated Thermowell
-
Characteristic / Application
metric style
DIN 43772 Form 2G/3G
threaded process connection
with neck -
Head connection
external thread:
M24 x 1.5
1/2" NPT -
Maximum standard immersion length
4.000 mm (157,48")
-
Max. immersion length on request
10.000 mm (393,7")
-
Process connection
thread:
G1/2"
G1/2"
G3/4"
G1"
1/2" NPT
3/4" NPT
R1/2"
R3/4"
R1"
M20 x 1.5 -
Thermowell root diameter
9 mm (0,35")
11 mm (0,43")
12 mm (0,47")
15 mm (0,59") -
Medium contact material
1.4404 (316L)
1.4571 (316Ti)
2.4816 (Alloy 600)
2.4819 (Alloy C276) -
Wetted part finishing (Ra)
< 0.8 μm (31.50 μin)
-
Tip shape
straight
reduced
tapered -
Temperature range
-200...1.100 °C (-328...2.012 °F)
-
Max. process pressure (static)
50 bar (725 psi)
-
Max. process pressure at 400 °C
depends on process connection

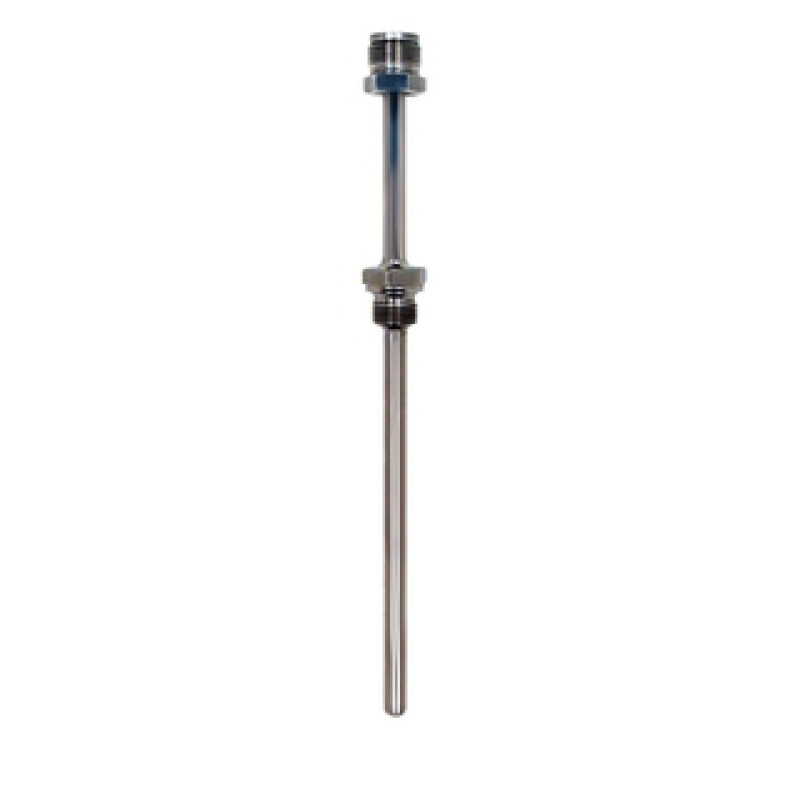

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

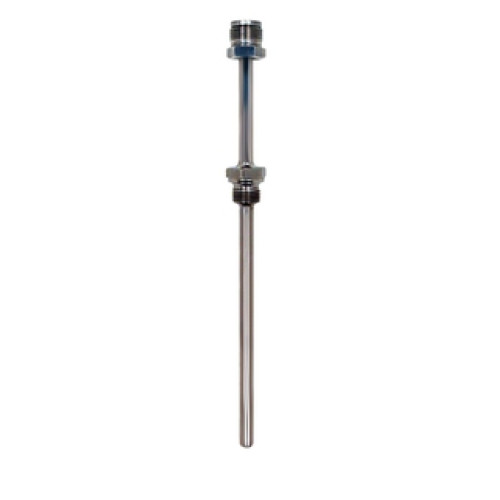

TW10 protection tubes are designed for the use in the fine chemicals industry but can also be used for generic applications.
-

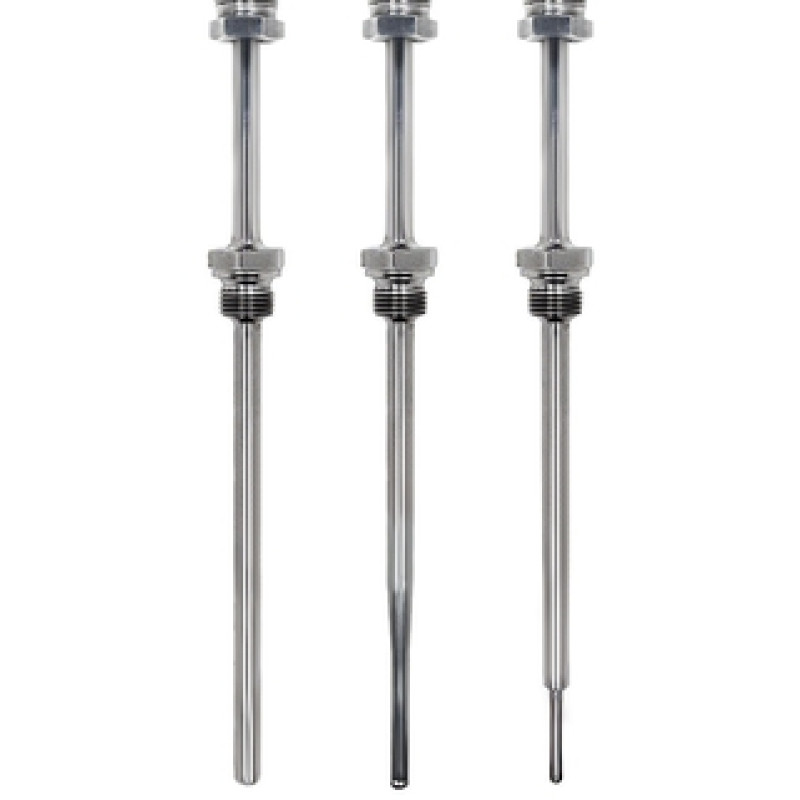

Tip of the protection tube with a reduced diameter or tapered for a faster response time
-
Customized immersion length
-
Surface finishing Ra < 0.8 μm
-
SS 316L/1.4404, SS 316Ti/1.4571 and Hastelloy C for the "wetted" parts
-
The common threaded process connections are supplied as standard; others are available on request
-
Material certification (3.1.B)
-
Test with penetrant liquids on welds
