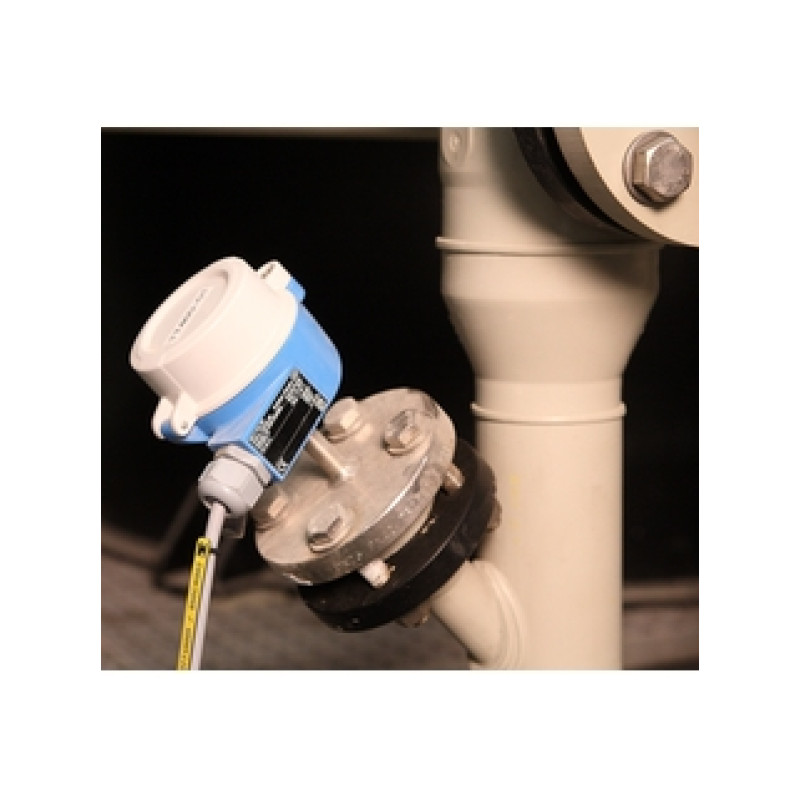

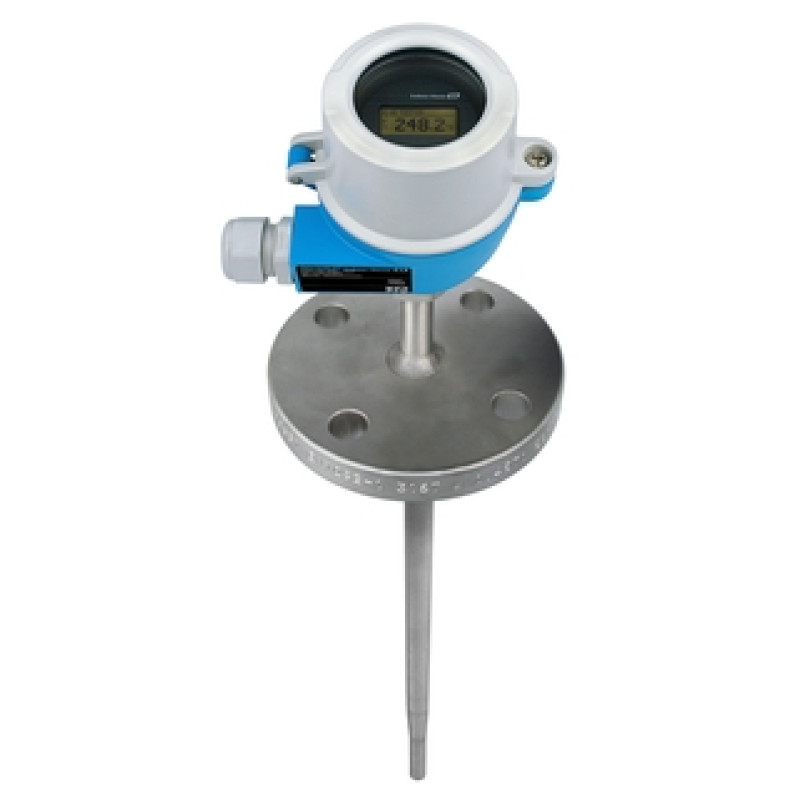

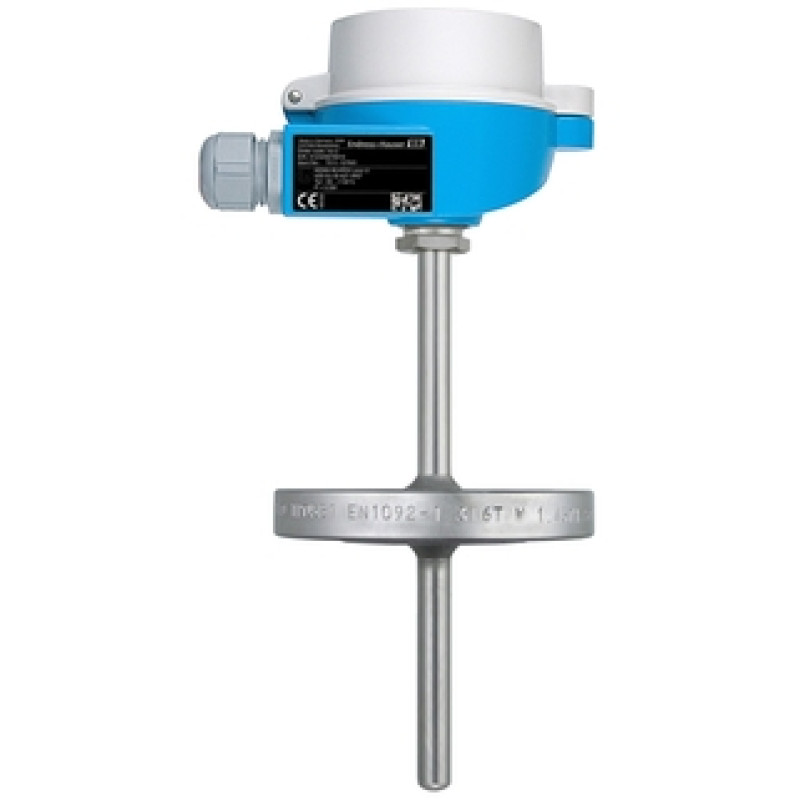

TR13 Modular RTD thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

Previous: TST13, TST131

Next: iTHERM TM131, iTHERM TM121

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  modular temperature assembly
  universal range of application
  suitable for hazardous areas
  flanged process connection
  with neck
  incl. thermowell / protection tube (metal)
  usable with insert StrongSens

• Thermowell / protection tube

  welded protection tube

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  9,0 mm (0,35'')
  11,0 mm (0,43'')
  12,0 mm (0,47'')
  14,0 mm (0,55")
  15,0 mm (0,59")

• Max. immersion length on request

  up to 10.000,00 mm (393,70'')

• Material protection tube/ thermowell

  1.4404 (316L)
  1.4571 (316Ti)
  Alloy C276 (2.4819)
  Alloy 600 (2.4816)

• Optional coating

  Tantal
  PTFE Teflon
  PVDF

• Process connection

  flange:
  DN15 PN40 B1 (EN1092)
  DN15 PN40 C (EN1092)
  DN25 PN20 B1 (EN1092)
  DN25 PN40 C (EN1092)
  DN25 PN50 B1 (EN1092)
  DN25 PN100 B2 (EN1092)
  DN40 PN40 B1(EN1092)
  DN50 PN40 B1 (EN1092)
  ASME 1" 150 RF (B16.5)
  ASME 1" 300 RF (B16.5)

• Tip shape

  straight
  reduced
  tapered

• Surface roughness Ra

  1,6 μm (63,0 μin.)

• Operating temperature range

  PT100 TF StrongSens:
  -50 °C ...500 °C
  (-58 °F ...932 °F)
  PT100 WW:
  -200 °C ...600 °C
  (-328 °F ...1.112 °F)
  PT100 TF:
  -50 °C ...400 °C
  (-58 °F ...752 °F)

• Max. process pressure (static)

  at 20 °C: 50 bar (725 psi)

• Accuracy

  class A acc. to IEC 60751
  class AA acc. to IEC 60751

• Response time

  depending on configuration

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6
  ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6
  ATEX IECEx II1/2D Ex ta/tb IIIC Da/Db
  ATEX II1G Ex ia IIC T6
  ATEX II 3 G Ex nA IIC T6, II3D
  NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450
  IECEx Ex ia IIC T6 Ga/Gb
  EAC Ex ia IIC T6 Ga + DIP
  NEPSI Ex nA IIC T6

• Certification

  Gost Metrology
  SIL (transmitter only)

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

• Universal range of application

• Measuring range: -200 to +600 °C (-328 to 1112 °F)

• Pressure range up to 100 bar (1450 psi)

• Degree of protection: up to IP68

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

• High degree of insert compatibility and design as per DIN 43772

• Extension neck to protect the head transmitter from overheating

• Fast response time with reduced/tapered tip form

• Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)

• Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
