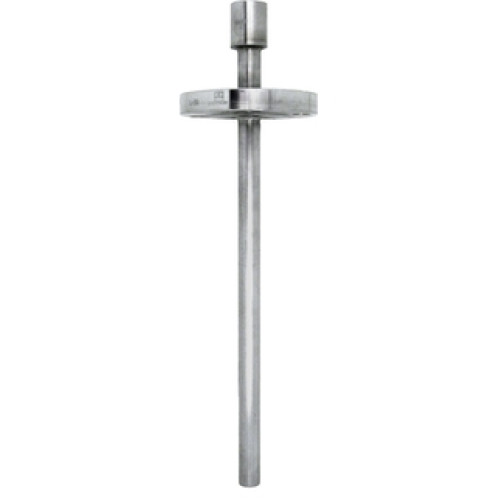

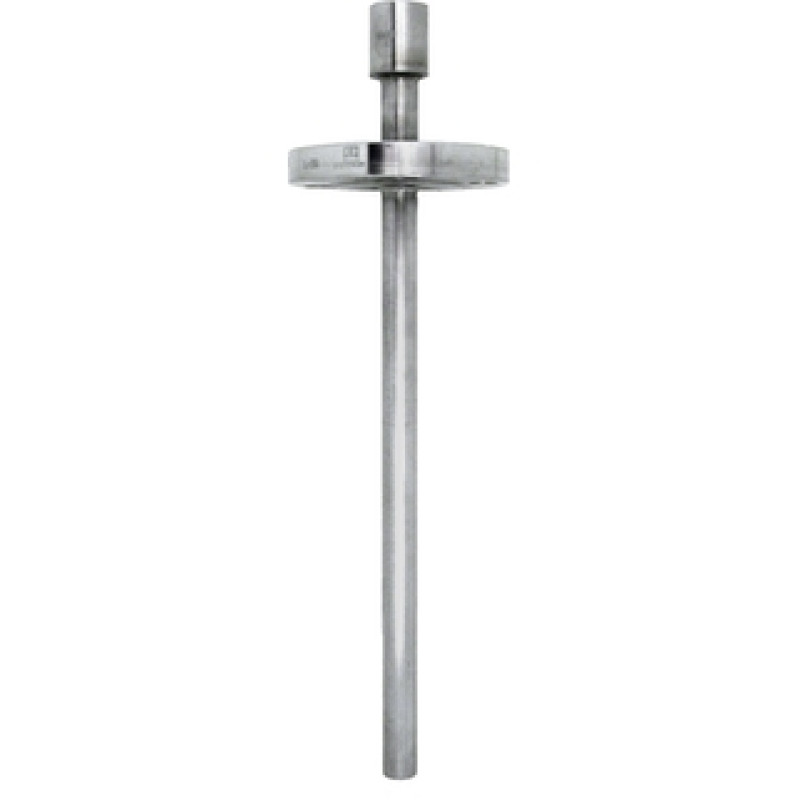

TA540 Protection tube for temperature sensors

Designed for use with resistance or thermocouple thermometers in heavy duty applications.

Next: Thermowell TT131

• Measuring principle

  Fabricated Thermowell

• Characteristic / Application

  metric style
  various process connections
  round extension

• Head connection

  internal thread:
  1/2" NPT
  G1/2"
  M20x1,5

• Maximum standard immersion length

  4.000 mm (157,48")

• Process connection

  thread:
  1/2" NPT
  3/4" NPT
  1" NPT
  M20x1,5
  flange:
  DN25 PN16 B1
  DN25 PN40 B1
  DN40 PN40 B1
  DN50 PN40 B1
  ASME 1" 150 RF
  ASME 1" 300 RF
  ASME 1" 600 RF
  ASME 1 1/2" 150 RF
  ASME 1 1/2" 300 RF
  ASME 1 1/2" 600 RF
  ASME 1 1/2" 600 RTJ
  ASME 1 1/2" 600 RTJ
  ASME 2" 300 RF
  ASME 2" 600 RF
  ASME 2" 300 RTJ
  ASME 2" 600 RTJ

• Thermowell root diameter

  1/4" SCH40
  1/2" SCH40
  1/2" SCH80
  3/4" SCH40

• Medium contact material

  1.4401 (316)
  1.4749 (~446)

• Wetted part finishing (Ra)

  < 1.6 μm (63.00 μin)

• Tip shape

  straight
  reduced

• Temperature range

  -200...1.100 °C (-328...2.012 °F)

• Max. process pressure (static)

  150 bar (2176 psi)

• Max. process pressure at 400 °C

  depends on process connection

This device is a metallic protection tube with threaded or flanged welded process connection. Thermometer connection is a NPT female thread. A wide range of flange sizes according to common standards and materials for this device is available. Ideally, this leads to a wide range of flexible installations in heavy duty applications.

TA540 is designed for use with resistance and thermocouple thermometers in heavy duty applications.

• The stem shape can be straight or stepped for fast response time

• A wide choice of pipe sizes, materials and process connections is available

• TA540 is an industry standard protection tube manufactured from pipe

• Extension, immersion length and total length can be chosen according to process requirements

• The process connection can either be threaded or flanged weld

• Special versions can be manufactured according to specifications

• The connection to the thermometer is a female thread
