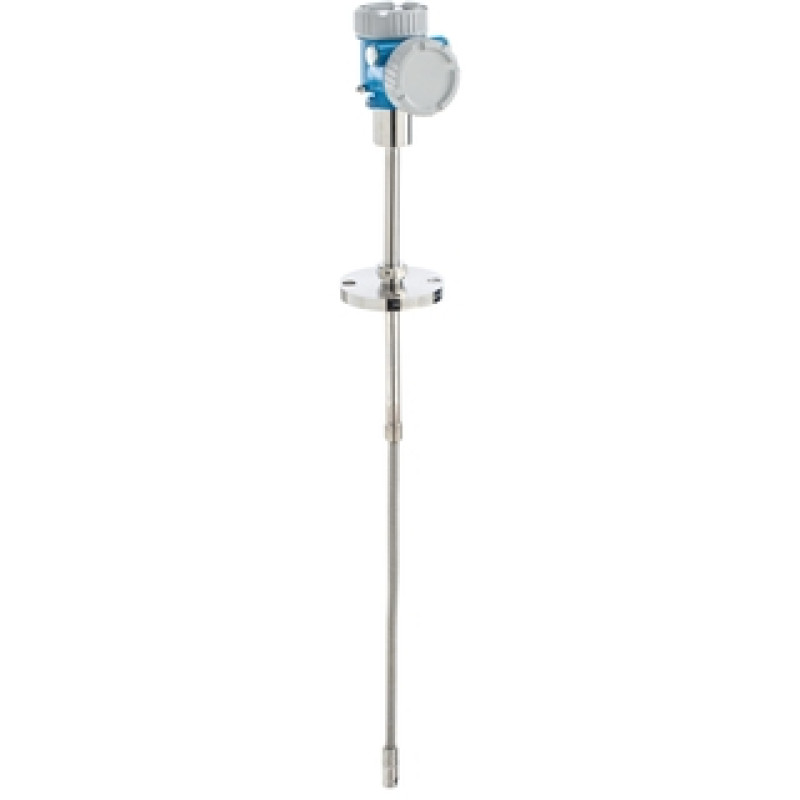

NMT81 Prothermo Average temperature measurement

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  High precision average temperature measurement up to 100 m (328 ft),
  Options:
  - Display
  - Sensor probe height adjustment
  - Heartbeat Verification + Monitoring

• Max. immersion length on request

  up to 100 m (328 ft)

• Process connection

  Flange:
  DN50...DN80,
  ASME 2"...4",
  JIS 10K
  Threads:
  3/4"
  MNPT2
  M20

• Operating temperature range

  Options:
  -40 °C...+75 °C
  (-40 °F...+167 °F)
  -55 °C...+235 °C
  (-67 °F...+455 °F)
  -196 °C...+100 °C
  (-321 °F...+212 °F)

• Accuracy

  +/- 0.032 °C (+/- 0.058 °F)

• Ex - approvals

  ATEX, IEC Ex, JPN Ex, UK Ex

Prothermo NMT81 measures the average temperature of a medium and can optionally identify the water level. With an optional 2m long capacitance sensor, the water level is measured continuously delivering current water level information at any time. With its highly precise average temperature measurement, the NMT81 is perfectly suitable for custody transfer and inventory monitoring together with tank gauging such as Proservo NMS80, NMS81, NMS83, Micropilot NMR81, NMR84 and TankSideMonitor NRF81.

• For precision average temperature and water bottom measurement

• Process connection: Flanges from 1-1/4“

• Temperature: -40 to +60°C (-40 to +140°F)

• Measuring distance: 100m (328.08ft)

• Total accuracy: ± 0.032°C(±0.06°F) with 5pt. temperature calibration

• Conversion (transmitter) accuracy: ±0.025 °C (0.045 °F)

• Sensor accuracy: ±0.02 °C (0.036 °F)

• Precise asset management thanks to up to 24 RTDs

• Corrosion-resistant process parts

• Minimize tank construction cost through 1-1/4” sized nozzle

• Easy installation

• Waterproof and dust proof housing

• Reduced downtime thanks to redundant RTDs processed by a software algorithm
