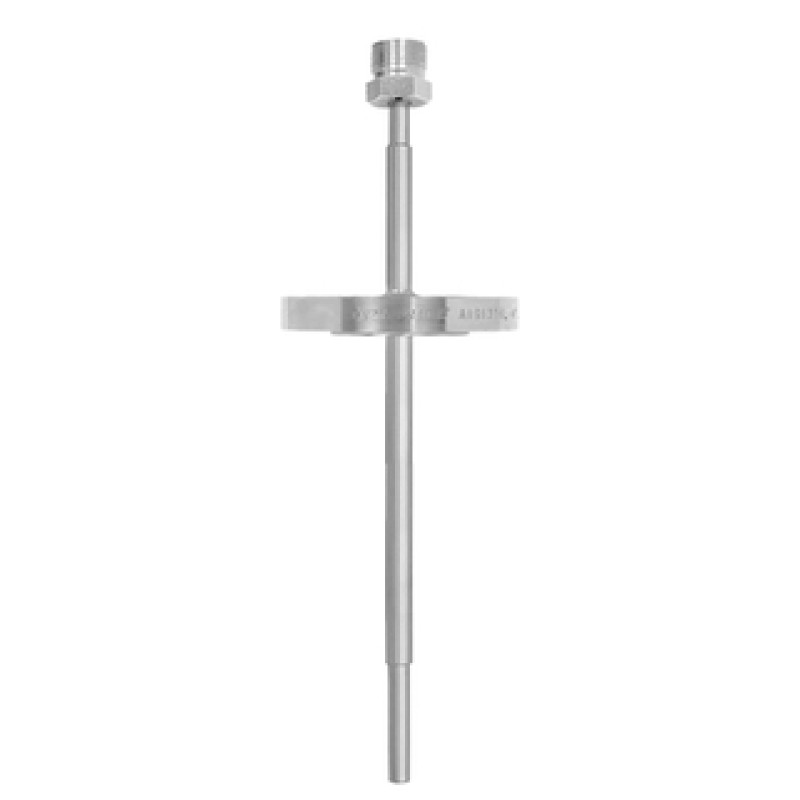

MLTWS01 Thermowell for temperature sensors

Designed for use in the Oil & Gas industry with flanged process connection

• Measuring principle

  Fabricated Thermowell

• Characteristic / Application

  Fabricated protection tube
  Similar to DIN 43772 Form 2F/3F

• Head connection

  external thread: M24 x 1.5

• Maximum standard immersion length

  445 mm, other lenghts on request

• Process connection

  Flange:
  DN25 PN40 B1 (EN1092-1)
  DN25 PN63 B1 (EN1092-1)

• Thermowell root diameter

  16 x 10 mm

• Medium contact material

  1.4571

• Tip shape

  Reduced Ø12 x 7 x 50 mm

• Temperature range

  200…600 °C (-328...1.112 °F)

• Max. process pressure at 400 °C

  Depending on pressure rating up to PN63

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for Oil & Gas industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

The thermowell is designed for use in the Oil & Gas industry but can also be used for general applications. Modular configuration enables a use in all industrial processes with severe thermal and mechanical stresses.

• Thermowell fabricated from welded tubes

• The process connection is flanged

• Extension, immersion length and total length can be chosen according to process requirements

• Special versions can be manufactured according to customer requirements
