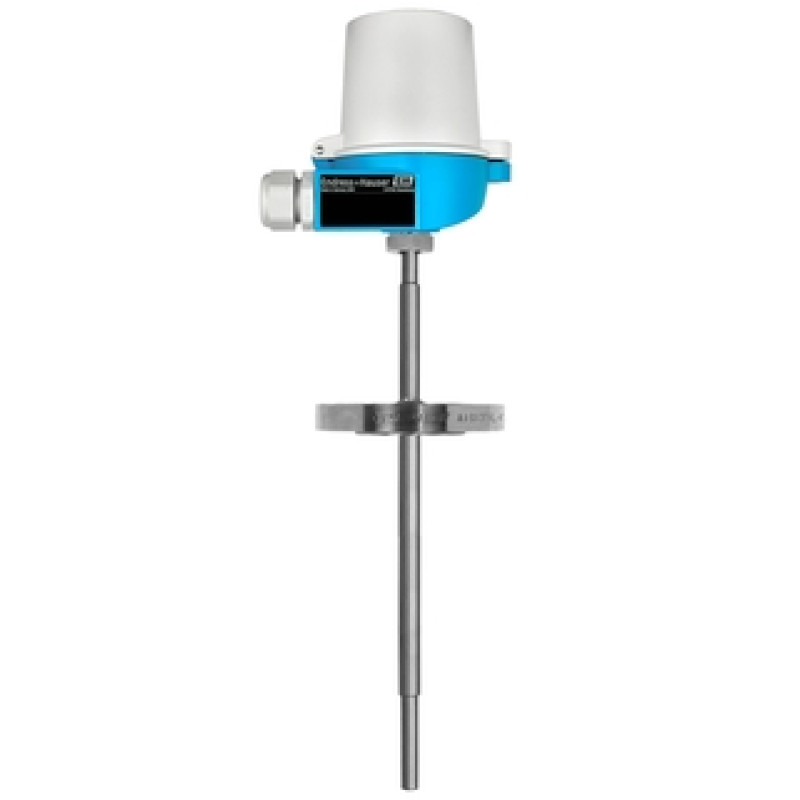

MLTTS01 Modular thermometer with RTD or TC insert

Designed for use in the Oil & Gas industry, with flanged process connection and an extension neck

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  modular temperature assembly
  universal range of application
  suitable for hazardous areas
  suitable for high process pressures
  flanged process connection
  incl. protection tube
  with neck
  usable with insert StrongSens

• Thermowell / protection tube

  incl. protection tube

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  16mm (0,71")

• Max. immersion length on request

  Not defined

• Material protection tube/ thermowell

  1.4571

• Process connection

  Flange DN25 PN40 B1 EN1092-1
  Flange DN25 PN63 B2 EN1092-1

• Tip shape

  Reduced 12x7x50

• Operating temperature range

  PT100:
  -50…500 °C
  (-58...932 °F)
  TC:
  max. 600 °C
  (max. 1.112 °F)

• Max. process pressure (static)

  depending on configuration

• Accuracy

  RTD Class A acc. to IEC 60751
  TC class 1 acc. To EN 60584

• Response time

  depending on configuration

• Integration head transmitter

  yes (4 … 20 mA HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II1G Ex ia IIC T6

• Certification

  Not defined

The modular and robust thermometer finds its use especially in the Oil & Gas industry. Harsh environments, corrosive substances and high pressures can be handled by the use of robust thermowells and special materials. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The thermometer can be ordered either with resistance (RTD) or with thermocouple (TC) insert.

Designed for use in the Oil & Gas industry with universal range of application

• Measuring range: Resistance insert (RTD): –50 to +500 °C (–58 to +932 °F), thermocouple (TC): –40 to +1 100 °C (–40 to +2 012 °F)

• Pressure range up to 63 bar (914 psi)

• Degree of protection: up to IP68

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

• High degree of insert compatibility and design as per DIN 43772

• Extension neck to protect the head transmitter from overheating

• Fast response time with reduced tip form

• Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia)
