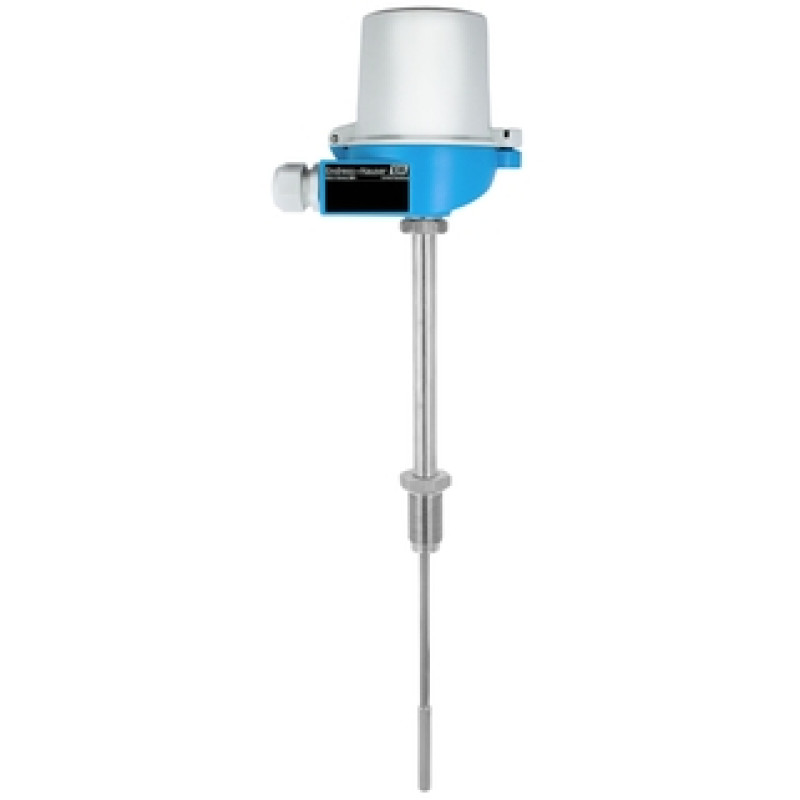

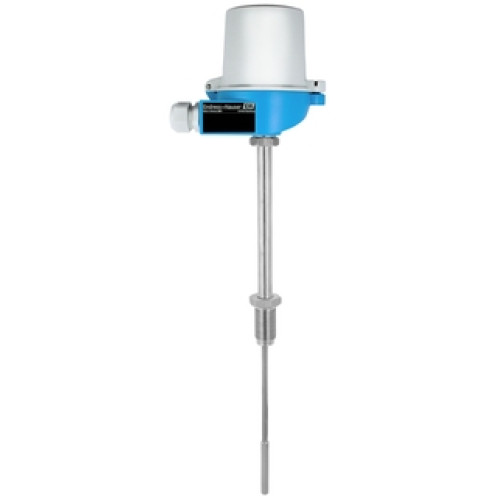

MLTTS00 Modular thermometer with RTD or TC insert

Designed for use in the Oil & Gas industry. For installation in already existing thermowells

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  modular temperature assembly
  universal range of application
  suitable for hazardous areas
  with neck
  to use with thermowell
  usable with insert StrongSens

• Thermowell / protection tube

  to be used with thermowell

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  Insert: 6,0mm (0,24")
  Insert: 8,0mm Sleeve

• Max. immersion length on request

  Not defined

• Material protection tube/ thermowell

  to be assebled into existing thermowell

• Process connection

  Thermometer connection G1/2" special fitting

• Operating temperature range

  PT100:
  -50…500 °C
  (-58...932 °F)
  TC:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. process pressure (static)

  depending on Thermowell

• Accuracy

  RTD Class A acc. to IEC 60751
  TC class 1 acc. To EN 60584

• Response time

  depending on configuration

• Integration head transmitter

  yes (4 … 20 mA HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II1G Ex ia IIC T6

• Certification

  Not defined

The modular and robust thermometer finds its use in applications for the Oil & Gas industry but also in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The thermometer can be ordered either with resistance (RTD) or with thermocouple (TC) insert.

Designed for use in the Oil & Gas industry with universal range of application:

• Suitable for installation in already existing thermowells

• Measuring range: Resistance insert (RTD) –50 to +500 °C (–58 to +932 °F), thermocouple (TC): –40 to +1 100 °C (–40 to +2 012 °F)

• Degree of protection up to IP68

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

• Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia)
