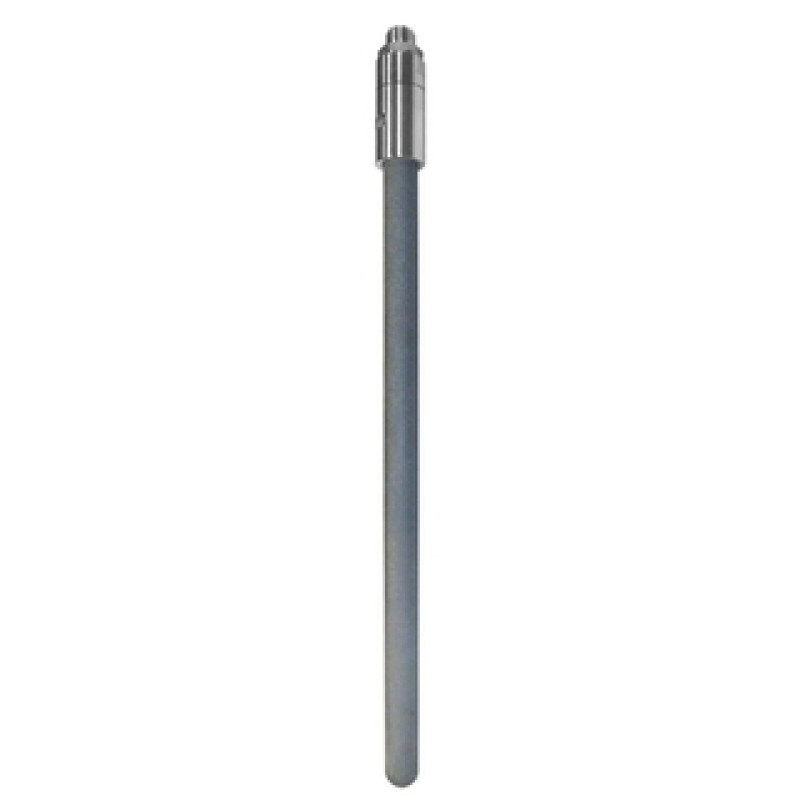

TWF11 Protection tube for high temperature assemblies

For steel treatment, concrete furnaces and primaries with very high process temperatures

• Measuring principle

  Fabricated Thermowell

• Characteristic / Application

  metric style
  Fabricated from segments
  ceramic protection tube
  process connection as compression fitting
  Replacement part for TAF11

• Head connection

  M24 x 1,5
  groove for DIN A Head

• Maximum standard immersion length

  1.500 mm (59,06")

• Max. immersion length on request

  4.000 mm (157,48")

• Process connection

  compression fitting:
  G3/4"
  G1"
  G11/2"
  adjustable Flange

• Thermowell root diameter

  14,0 mm (0,55")
  16,0 mm (0,59")
  17,0 mm (0,68")
  22,0 mm (0,87")
  24,0 mm (0,94")
  26,6 mm (1,05")

• Medium contact material

  Ceramic (C610)
  silicon nitride ceramic (SiN)
  sintered silicon carbide (SiC)

• Tip shape

  straight

• Temperature range

  -50...1650 °C (-58...3.002 °F)

• Max. process pressure (static)

  1 bar (15 psi)
