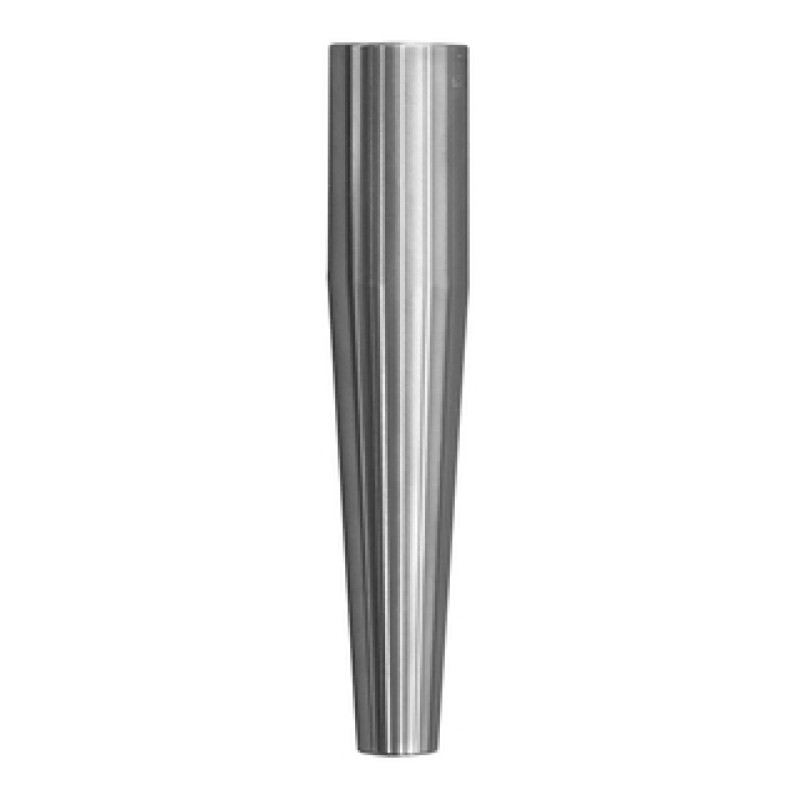

TU51 Weld-in barstock thermowell, US style

Thermowell with weld-in process connections and round extension

• Measuring principle

  Bar stock Thermowell

• Characteristic / Application

  US-style
  weld-in process connections

• Head connection

  internal thread:
  1/2" NPT

• Maximum standard immersion length

  24"

• Process connection

  weld-in

• Thermowell root diameter

  1.050"
  1.315"

• Medium contact material

  316/ 316L
  others on request

• Wetted part finishing (Ra)

  32 µin (0.80 µin)

• Tip shape

  tapered

• Temperature range

  -200...700 °C (-328...1.292 °F)

• Max. process pressure (static)

  500 bar (7252 psi)

• Max. process pressure at 400 °C

  depends on configuration

The robust thermowell is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials.

Designed for use with resistance and thermocouple thermometers in industrial or heavy duty applications.

• For increased protection requirements of the temperature sensor regarding physical and chemical effects

• For use in pipes and containers or tanks

• Ideally suited to all measuring points that require regular recalibration by replacing the insert in closed processes

• Extension, immersion length and total length can be chosen according to process requirements

• Modular configuration enable a use in all industrial processes with severe thermal and mechanical stresses

• Fast response time with conical tip form
