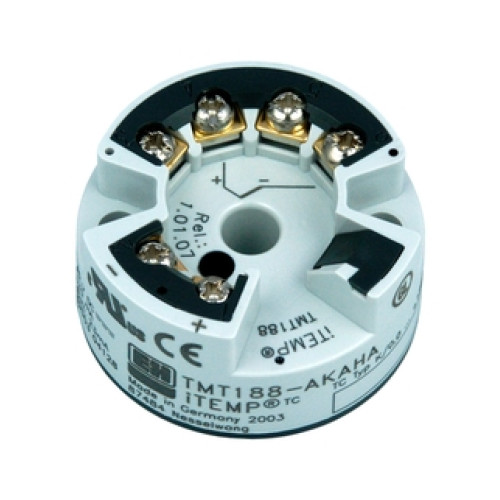

TMT188 iTEMP Temperature head transmitter

Transformation of the sensor signal into a stable and standardized output signal for all industries

Previous: TMC134, TMC138

• Measuring principle

  Head transmitter

• Input

  1 x TC

• Output

  1 x analog 4...20 mA

• Auxiliary power supply

  8...35 V DC (standard-version)
  8...30 V DC (Ex-version)

• Installation

  Terminal head form B

• Accuracy

  (Type K) <= 0,5 K
  (Type K) <= 0,9 °F

• Galvanic isolation

  yes

• Certification

  UL Ex IS
  UL Ex NI
  GOST Ex i
  GL marine approval
  GOST Metrology
  FM IS,NI,Class I,Div.1+2,Group ABCD
  CSA IS,NI,Class I,Div.1+2,Group ABCD
  ATEX II1G EEx ia IIC T4/T5/T6
  ATEX II3G Ex nA IIC Gc
  ATEX II3D Ex tc IIIC Dc
  ATEX II1G Ex ia IIC T6 Ga, II3D
  ATEX II3G Ex nA IIC Gc, II3D
  FM+CSA IS,NI,Class I,Div.1+2,Group ABCD
  CSA General Purpose
  EAC Ex ia IIC T6 Ga
  GL (German Lloyd)

The transmitter is designed for the transformation of a thermocouple (TC) sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications.

• Fixed range temperature head transmitter for converting a TC input signal into a 4 to 20 mA analog output signal

• Input: Thermocouple (TC)

• High accuracy in complete ambient temperature range

• Failure information when sensor breaks or short circuits as per NAMUR NE 43

• EMC as per NAMUR NE 21, CE

• Ex approval: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS

• UL recognized component to UL 3111-1

• Marine approval

• Galvanic isolation
