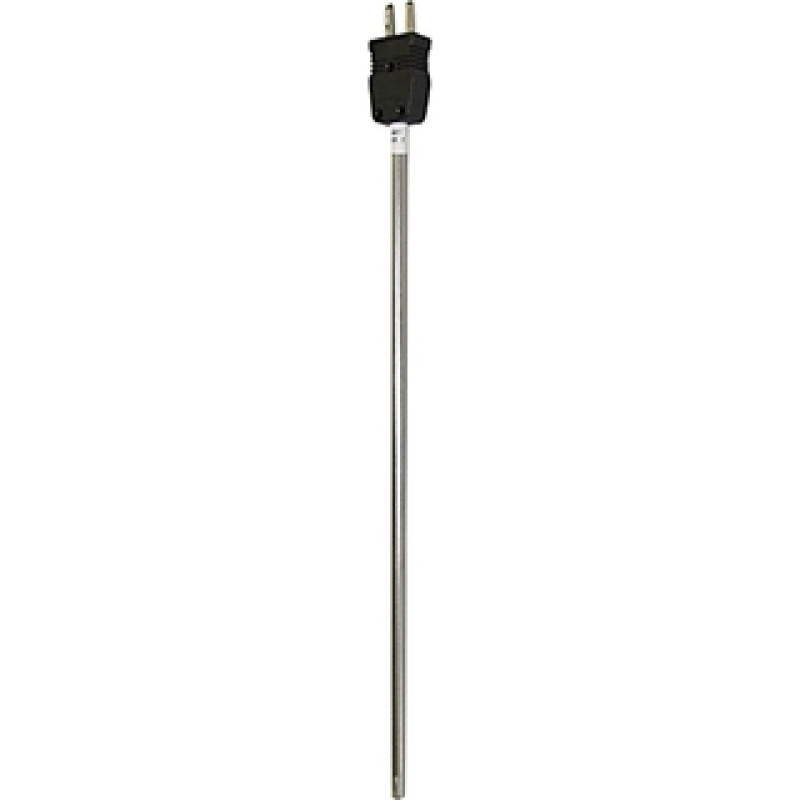

TH56 US style thermocouple sensor, with plug connection

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

• Measuring principle

  Thermocouple

• Characteristic / Application

  Industrial US style
  cable probe
  process connection as compression fitting

• Thermowell / protection tube

  without (not intended to use with thermowell)

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  1/16'' (1,59 mm)
  1/8'' (3,18 mm)
  3/16'' (4,76 mm)
  1/4'' (6,35 mm)

• Max. immersion length on request

  up to 96" (2438 mm)
  others on request

• Material protection tube/ thermowell

  Sensor sheath
  316
  Alloy 600

• Optional coating

  not applicable

• Process connection

  compression fitting:
  NPT1/8"
  NPT1/4"

• Tip shape

  straight

• Surface roughness Ra

  not defined

• Operating temperature range

  Type T:
  -270 °C ...370 °C
  (-454 °F ...698 °F)
  Type J:
  -210 °C ...720 °C
  (-346 °F ...1.328 °F)
  Type E:
  -270 °C ...820 °C
  (-454 °F ...1.508 °F)
  Type K:
  -270 °C ...1.150 °C
  (-454 °F ...2.102 °F)
  Type N:
  -270 °C ... 1.150 °C
  (-454 °F ...2.102 °F)

• Max. process pressure (static)

  Standard acc. to ASTM E-230
  Special acc. to ASTM E-230

• Accuracy

  Standard acc. to ASTM E-230
  Special acc. to ASTM E-230

• Response time

  63% rt = 0,3 s

• Integration head transmitter

  no

The thermocouple sensor with plug connection is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is used in many process and laboratory applications such as heat exchangers, furnaces or dryers. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

Magnesium oxide insulated thermocouples, commonly referred to as MgO thermocouples, are used in many process and laboratory applications. They have many desirable characteristics making thermocouples a good choice for general and special purpose applications.

The sensors can be used on:

• Heat exchangers

• Power & recovery areas

• Furnaces

• Dryers

• Flue gas

• Compressor stations

• Process reactors

• Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution.

• Improved galvanic isolation on most devices (2 kV)

• One source shopping for temperature measurement solutions. Remove and install straight out of the box!

• All iTEMP® transmitters provide long term stability ≤ 0.05 % per year
