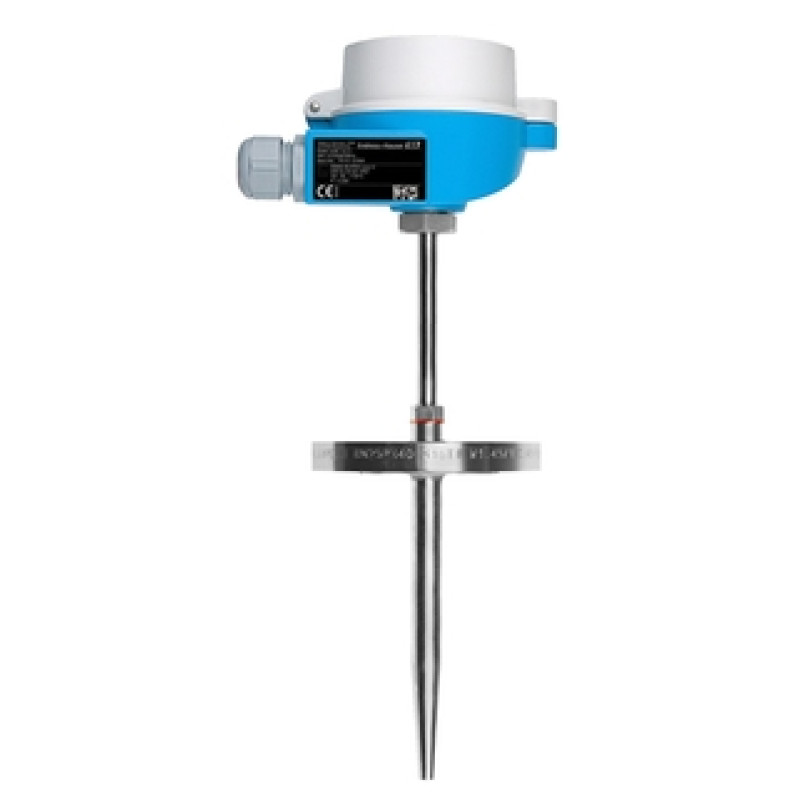

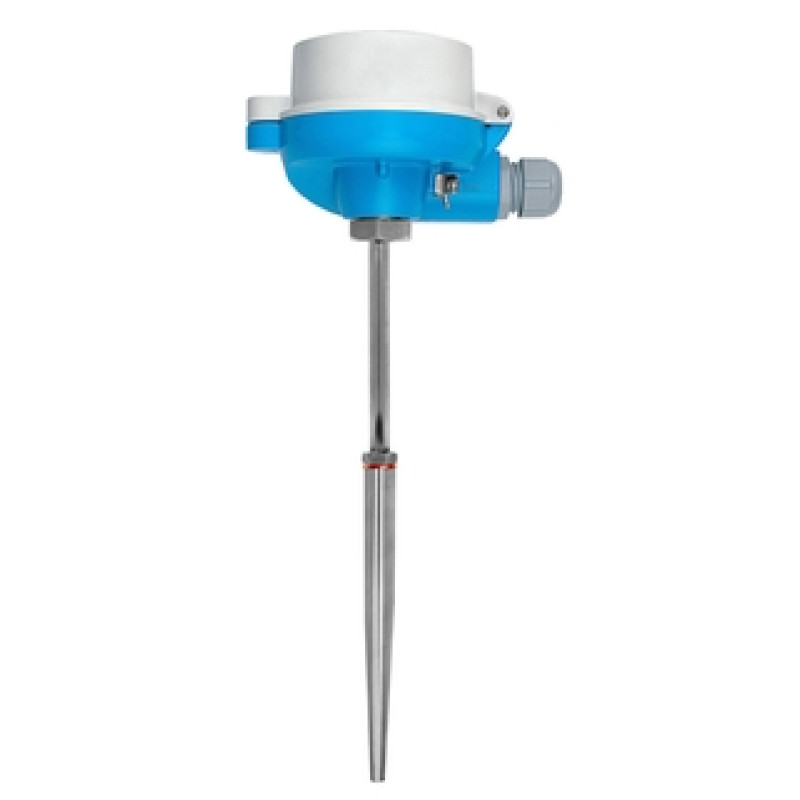

TC15 Modular TC thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

Previous: Omnigrad S TSC140T

• Measuring principle

  Thermocouple

• Characteristic / Application

  metric style
  modular temperature assembly
  universal range of application
  suitable for hazardous areas
  suitable for high process pressures
  flanged process connection
  with neck
  incl. thermowell / protection tube (metal)

• Thermowell / protection tube

  bar stock (drilled)

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  18,0 mm (0,71'')
  24,0 mm (0,94'')

• Max. immersion length on request

  up to 30.000,00 mm (1.181,10'')

• Material protection tube/ thermowell

  1.0460 (A105)
  1.4571 (316Ti)
  1.7335 (13CrMo4-5; F-11)
  Alloy C276 (2.4819)
  Duplex SAF 2205 (1.4462)
  Titan Gr2 (3.7035 )

• Optional coating

  Not defined

• Process connection

  weld in version
  flange:
  DN25 PN40 B1 (EN1092)
  DN40 PN40 B1(EN1092)
  DN50 PN40 B1 (EN1092)
  ASME 1" 150 RF (B16.5)
  ASME 1" 300 RF (B16.5)

• Tip shape

  tapered

• Surface roughness Ra

  0,8 μm (31,5 μin.)

• Operating temperature range

  Type K:
  max. 1.100 °C
  (max. 2.012 °F)
  Type J:
  max. 750 °C
  (max. 1.382 °F)

• Max. process pressure (static)

  at 20 °C: 400 bar (5.802 psi)

• Accuracy

  class 1 acc. to IEC 60584

• Response time

  depending on configuration

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II
  NEPSI
  IECEx
  EAC Ex
  UKCA

• Certification

  Gost Metrology
  SIL (transmitter only)

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

• Universal range of application

• Particularly suitable for steam and gas applications with high process pressures and temperatures

• Measuring range: –40 to 1100 °C (–40 to 2012 °F)

• Static pressure range up to 400 bar (5800 psi)

• Degree of protection: up to IP68

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

• High degree of insert compatibility and design as per DIN 43772

• Extension neck to protect the head transmitter from overheating

• Fast response time with reduced/tapered tip form

• Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), non-sparking (Ex nA)

• Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
