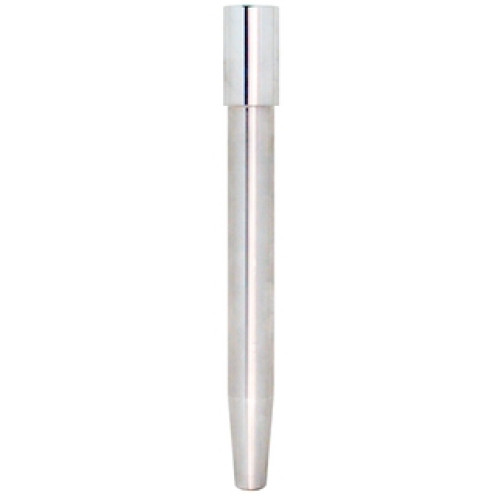

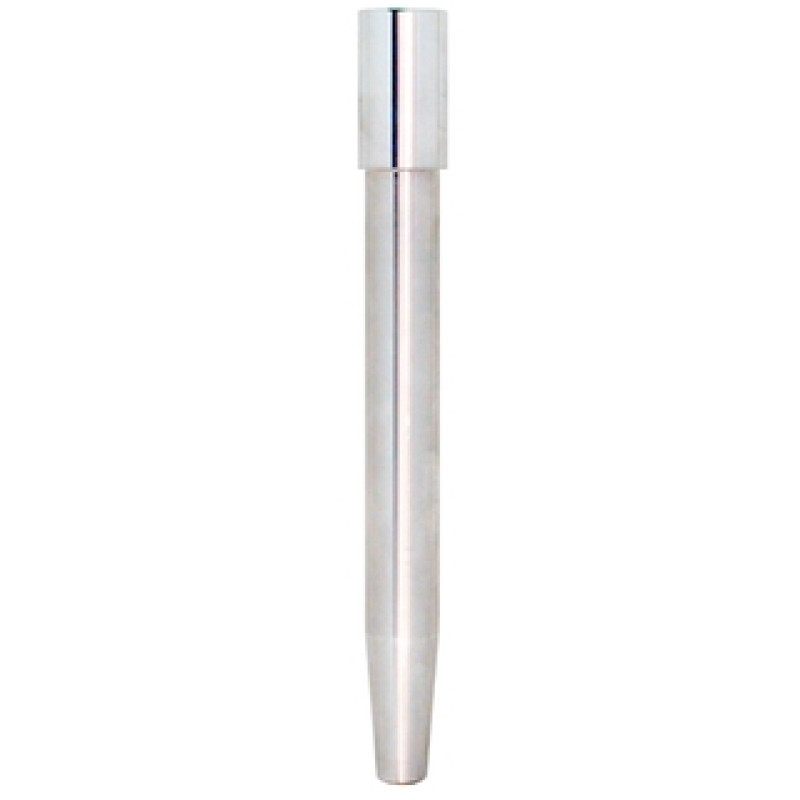

TA571 Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Next: iTHERM TT151

• Measuring principle

  Bar stock Thermowell

• Characteristic / Application

  metric style
  weld-in process connections
  round extension

• Head connection

  internal thread:
  1/2" NPT
  1/2" NPSM
  G1/2"

• Maximum standard immersion length

  1000 mm (39,37")

• Max. immersion length on request

  5.000 mm (196,85")

• Process connection

  to weld-in

• Thermowell root diameter

  20 mm (0,79")
  25,4 mm (1")

• Medium contact material

  1.4401 (316)
  1.4404 (316L)
  1.4571 (316Ti)

• Wetted part finishing (Ra)

  < 0,8 μm (31,50 μin)
  < 1,6 μm (63,00 μin)

• Tip shape

  straight
  conical
  conical tapered

• Temperature range

  -200...700 °C (-328...1.292 °F)

• Max. process pressure (static)

  500 bar (7252 psi)

• Max. process pressure at 400 °C

  300 bar (4351 psi)

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TA571 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

• The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements

• A wide choice of standard materials is available; other versions can be ordered according to specification

• Different grades of surface finishing are also available

• The process connection is welded. The thermowell stem shape can be straight with a conical tip shape
