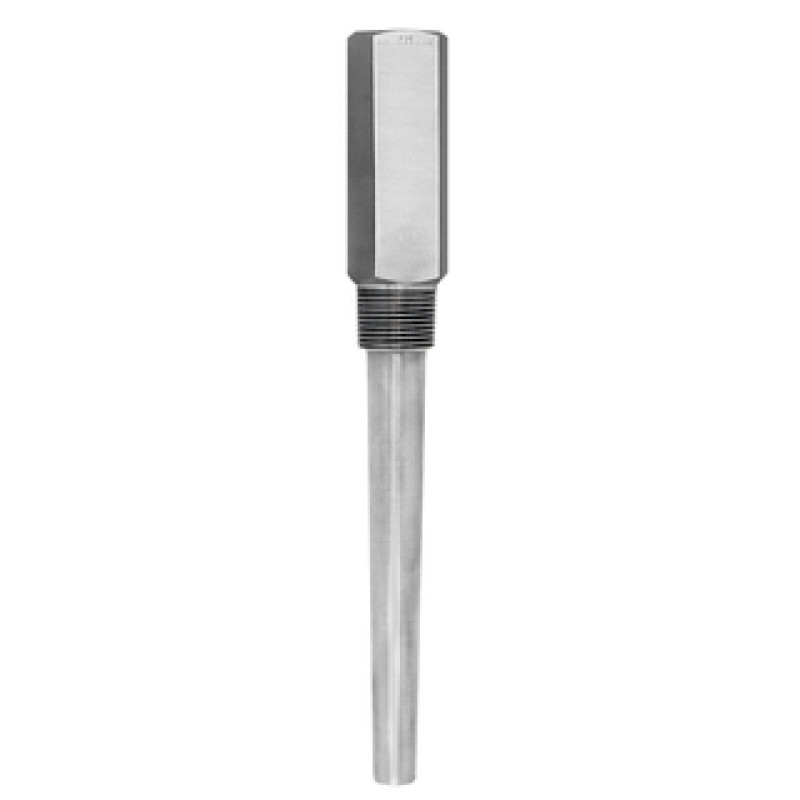

TA565 Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Next: iTHERM TT151

• Measuring principle

  Bar stock Thermowell

• Characteristic / Application

  metric style
  threaded process connection
  hexagonal extension

• Head connection

  internal thread:
  1/2" NPT

• Maximum standard immersion length

  150 mm (5,91")

• Max. immersion length on request

  300 mm (11,81")

• Process connection

  Thread 1" NPT

• Thermowell root diameter

  19,5 mm (0,78")
  20 mm (0,79")
  25 mm (0,98")
  27 mm (1,06")

• Medium contact material

  1.4401 (316)
  1.4404 (316L)
  1.4571 (316Ti)

• Wetted part finishing (Ra)

  < 0,8 μm (31,50 μin)
  < 1,6 μm (63,00 μin)

• Tip shape

  straight
  conical

• Temperature range

  -200...700 °C (-328...1.292 °F)

• Max. process pressure (static)

  500 bar (7252 psi)

• Max. process pressure at 400 °C

  300 bar (4351 psi)

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TA565 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

• The extension and the immersion length as well as the bar dimensions can be chosen according to process requirements

• A wide choice of standard diameters and materials is available; other versions can be ordered according to specification

• Different grades of surface finishing are also available

• The process connection is threaded. The thermowell stem shape can be straight or conical
