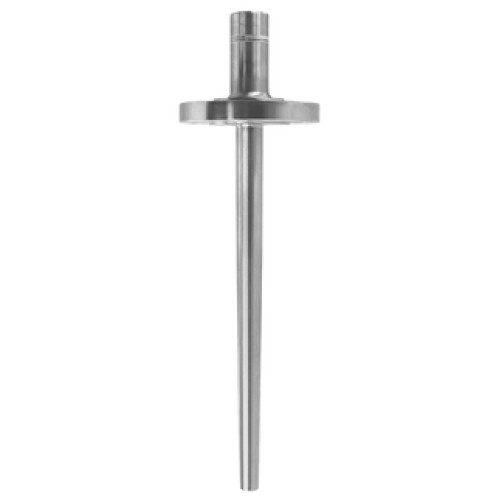

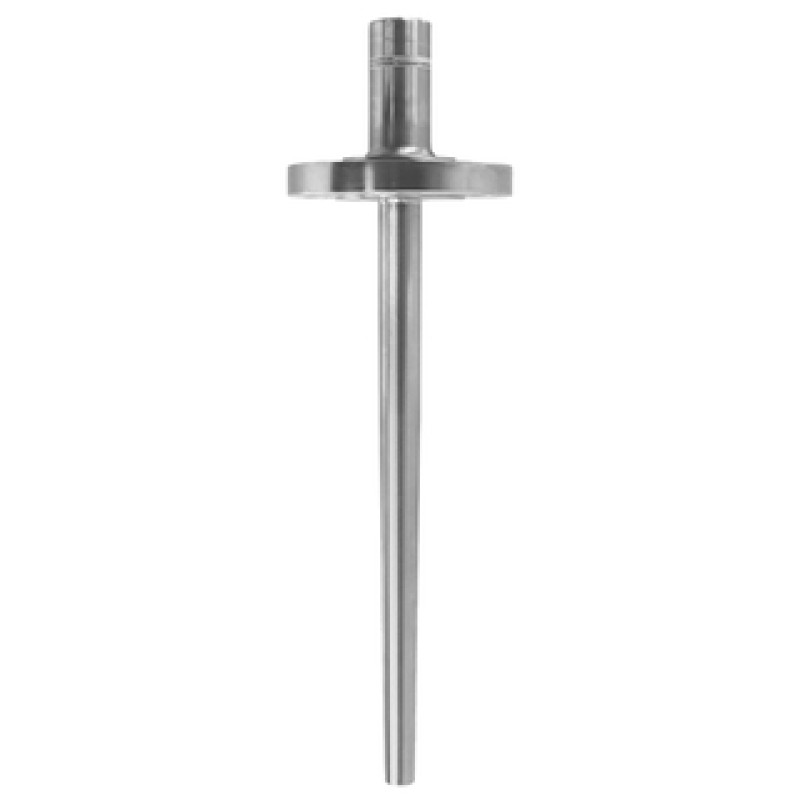

TA550 Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Previous: iTHERM TT151

• Measuring principle

  Bar stock Thermowell

• Characteristic / Application

  metric style
  various process connections
  round extension

• Head connection

  internal thread:
  1/2" NPT

• Maximum standard immersion length

  900 mm (35,43")

• Max. immersion length on request

  5.000 mm (196,85")

• Process connection

  thread:
  1/2" NPT
  3/4" NPT
  flange:
  ASME 1" 150 RF (B16.5)
  ASME 1" 300 RF (B16.5)
  ASME 1" 600 RF (B16.5)
  ASME 1 1/2" 150 RF (B16.5)
  ASME 1 1/2" 300 RF (B16.5)
  ASME 1 1/2" 600 RF (B16.5)
  ASME 1 1/2" 1500 RF (B16.5)
  ASME 1 1/2" 600 RTJ (B16.5)
  ASME 1 1/2" 1500 RTJ (B16.5)
  ASME 2" 150 RF (B16.5)
  ASME 2" 300 RF (B16.5)
  ASME 2" 600 RF (B16.5)
  ASME 2" 300 RTJ (B16.5)
  ASME 2" 600 RTJ (B16.5)

• Thermowell root diameter

  20 mm (0,79")

• Medium contact material

  1.4401 (316)
  1.4404 (316L)
  1.4571 (316Ti)
  2.4819 (Alloy C276)
  2.4360 (Alloy 400)

• Wetted part finishing (Ra)

  < 0.8 μm (31.50 μin)
  < 1.6 μm (63.00 μin)

• Tip shape

  straight
  conical

• Temperature range

  -200...700 °C (-328...1.292 °F)

• Max. process pressure (static)

  500 bar (7252 psi)

• Max. process pressure at 400 °C

  300 bar (4351 psi)

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TA550 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

• The extension and the immersion lengths as well as the bar dimensions can be chosen according to process requirements

• A wide choice of standard materials and process connections is available; other versions can be ordered according to specification

• Different grades of surface finishing are also available

• The process connection can be threaded or flanged weld
