TW15 Barstock thermowell

Thermowell made of drilled barstock material. Mainly used in heavy duty or industrial applications

Previous: TA573, TA574

Next: iTHERM TT151

• Measuring principle

  Bar stock Thermowell

• Characteristic / Application

  metric style
  DIN 43772 Form 4/4F
  flanged process connection or weld-in with neck

• Head connection

  external thread:
  M24 x 1.5
  1/2" NPT

• Maximum standard immersion length

  250 mm (9,84")

• Max. immersion length on request

  400 mm (15,75")

• Process connection

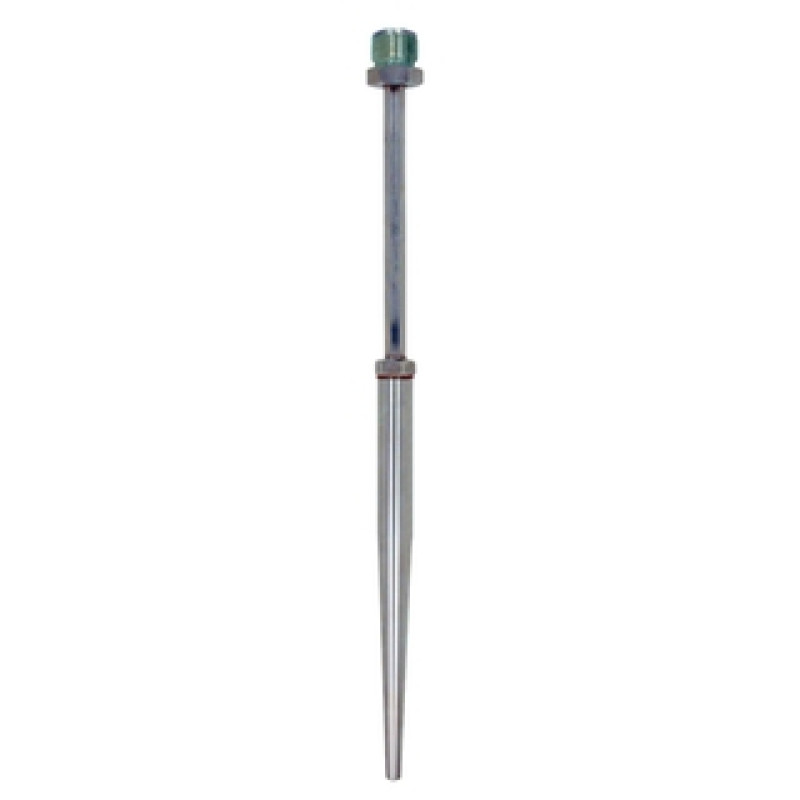

  For welding with welding socket TA115 as accessory

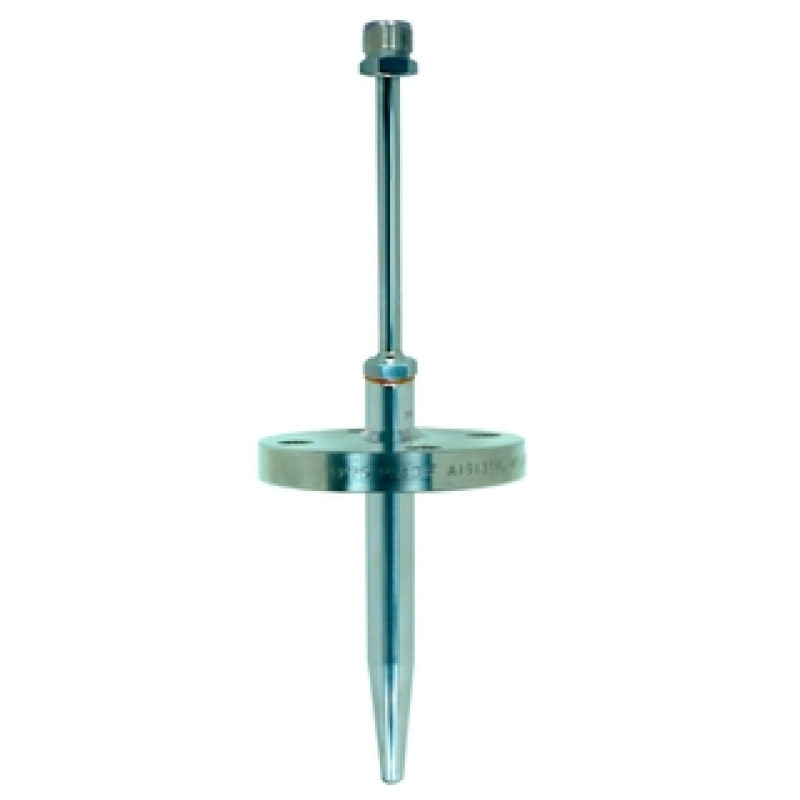

  For flanging with the following flange sizes:
  DN25 PN40 B1
  DN40 PN40 B1
  DN50 PN40 B1
  ASME 1" 150 RF
  ASME 1" 300 RF
  ASME 1 1/2" 150 RF

• Thermowell root diameter

  18 mm (0,71")
  24 mm (0,94")

• Medium contact material

  1.4571 (316Ti)
  2.4819 (Alloy C276)
  1.7335 (13CrMo4-5)
  Titan
  Duplex SAF2205
  C22.8
  1.5415 (16Mo3)
  1.7380 (10CrMo 9 10)

• Wetted part finishing (Ra)

  < 0.8 µm (31.50 µin)
  < 1.6 µm (63.00 µin)

• Tip shape

  conical

• Temperature range

  -200...1.100 °C (-328...2.012 °F)

• Max. process pressure (static)

  400 bar (5802 psi)

• Max. process pressure at 400 °C

  400 bar (5802 psi)

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TW15 is designed for use with resistance and thermocouple thermometers in heavy duty applications.

Modular configuration according to DIN 43772 (form 4/4F) enable a use in all industrial processes with severe thermal and mechanical stresses.

• Extension, immersion length and total length can be chosen according to process requirements

• A wide choice of dimensions, materials and process connections is available

• Special versions can be manufactured according to customer requirements

• The process connection can either be weld-in or flanged
