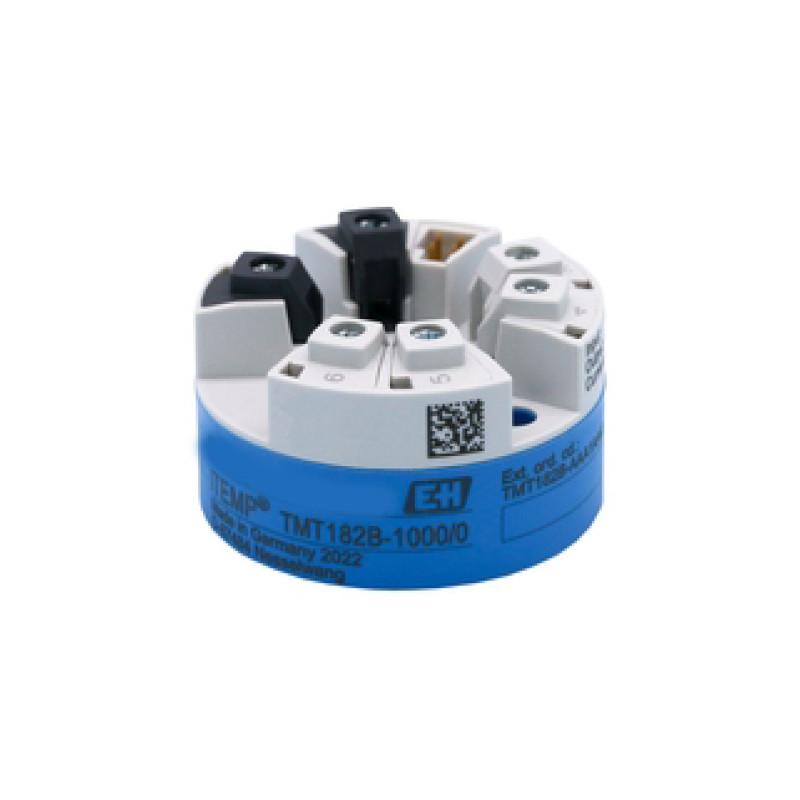

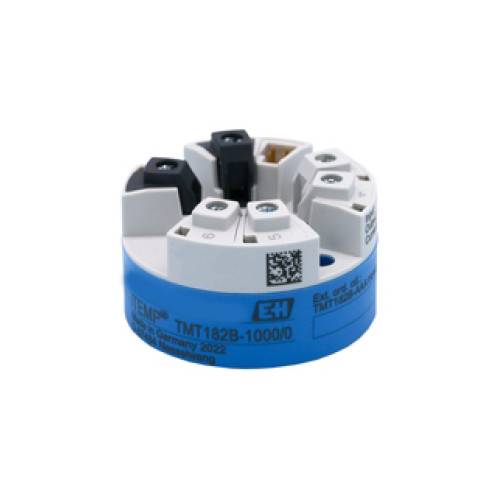

TMT182B iTEMP temperature transmitter

PLEASE ASK FOR PRICE!

iTEMP TMT182B head transmitter with HART® protocol for universal use

• Measuring principle

  Head transmitter

• Input

  1 x RTD, TC, Ohm, mV

• Output

  1 x analog 4...20 mA

• Auxiliary power supply

  10...36 V DC (standard-version)
  10...30 V DC (Ex-version)

• Communication

  HART-protocol

• Installation

  Terminal head form B

• Accuracy

  (Pt100, -50...200 °C) <= 0,14 K
  (Pt100, -58...392 °F) <= 0,25 °F

• Galvanic isolation

  yes

• Certification

  ATEX II1G Ex ia IIC T6
  ATEX II3G Ex ec IIC T6
  NEPSI Ex ia IIC T6 Ga
  NEPSI Ex nA II T6 Gc
  ATEX IECEx II1G Ex ia IIC T6 Ga

The iTEMP TMT182B temperature head transmitter is designed for applications across all process industries that require accurate temperature measurements and HART® communication. The device provides valuable additional diagnostic information and stable measurement performance, helping to improve process efficiency and stable plant operation.​

• Temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4-20 mA output signal

• Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω), voltage transmitters (mV)

• Reliability, long-term stability, high precision and advanced diagnostics for safe operations

• Installation in terminal heads form B or cabinets

• Safe operation in hazardous areas; international approvals

• Reliable operation with continuous sensor and device monitoring

• Diagnostics information according to NAMUR NE 107

• Ready to use: pre-programmed ex-works if required

• Easy configuration with free software
