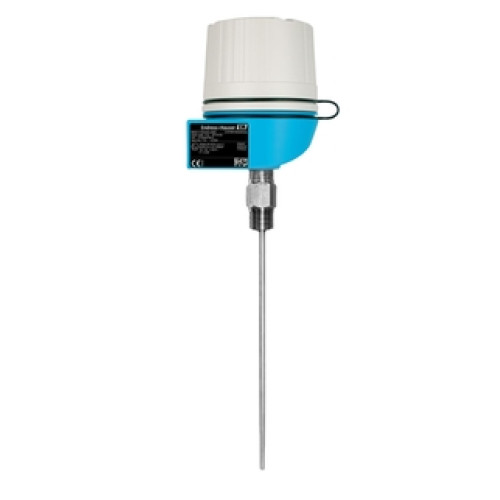

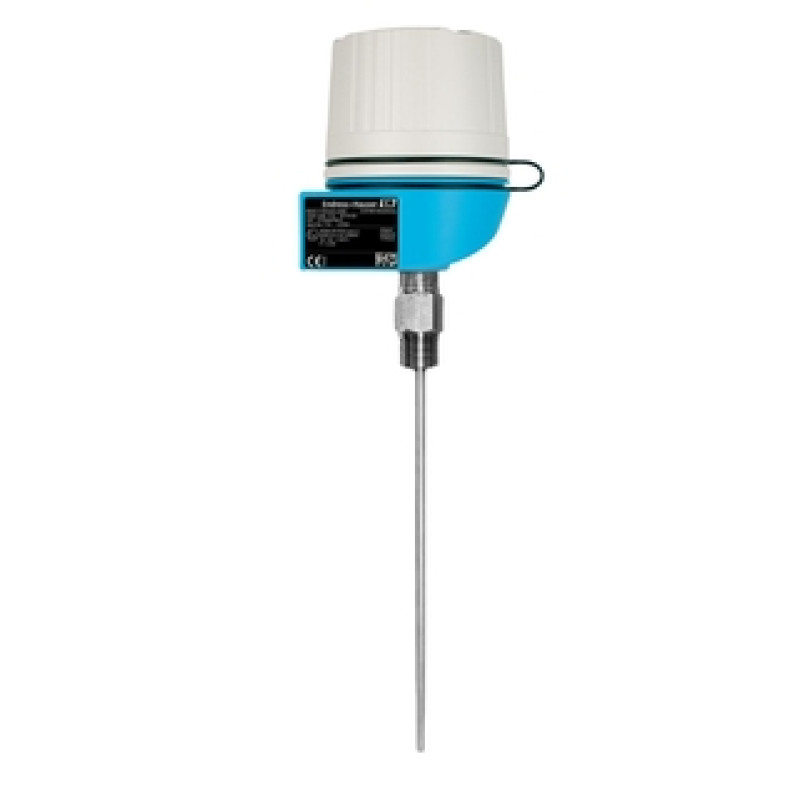

T55 Explosion proof TC thermometer, US style

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

• Measuring principle

  Thermocouple

• Characteristic / Application

  Explosion Proof US style
  modular temperature assembly
  for heavy duty applications
  with extension
  to be used with existing thermowell

• Thermowell / protection tube

  to use with thermowell

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  1/4'' (6,35 mm)
  3/8'' (9,53 mm)

• Max. immersion length on request

  up to 100" (2540 mm)
  others on request

• Material protection tube/ thermowell

  Sensor sheath
  316
  Alloy 600

• Optional coating

  not applicable

• Process connection

  Thermowell connection
  male thread:
  NPT1/2"

• Tip shape

  straight

• Surface roughness Ra

  not applicable

• Operating temperature range

  Type T:
  -270 °C ...370 °C
  (-454 °F ...698 °F)
  Type J:
  -210 °C ...720 °C
  (-346 °F ...1.328 °F)
  Type E:
  -270 °C ...820 °C
  (-454 °F ...1.508 °F)
  Type K:
  -270 °C ...1.150 °C
  (-454 °F ...2.102 °F)
  Type N:
  -270 °C ...1.150 °C
  (-454 °F ...2.102 °F)

• Max. process pressure (static)

  not applicable

• Accuracy

  Standard acc. to ASTM E-230
  Special acc. to ASTM E-230

• Response time

  63% rt = 1 s

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  FM XP
  CSA XP
  FM/CSA XP
  CSA GP

• Certification

  SIL (transmitter only)

The high modular thermometer is used for several applications with harsh environments, e.g. in Power Plants, Refineries or in the Chemical or Petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.

The sensor assembly can be used in process industries such as:

• Chemicals

• Petrochemical

• Refineries

• Offshore Platforms

• FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety

• One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications

• Remove and install straight out of the box!

• Improved galvanic isolation on most devices (2 kV)

• Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution

• All iTEMP® transmitters provide long term stability ≤0.05% per year
