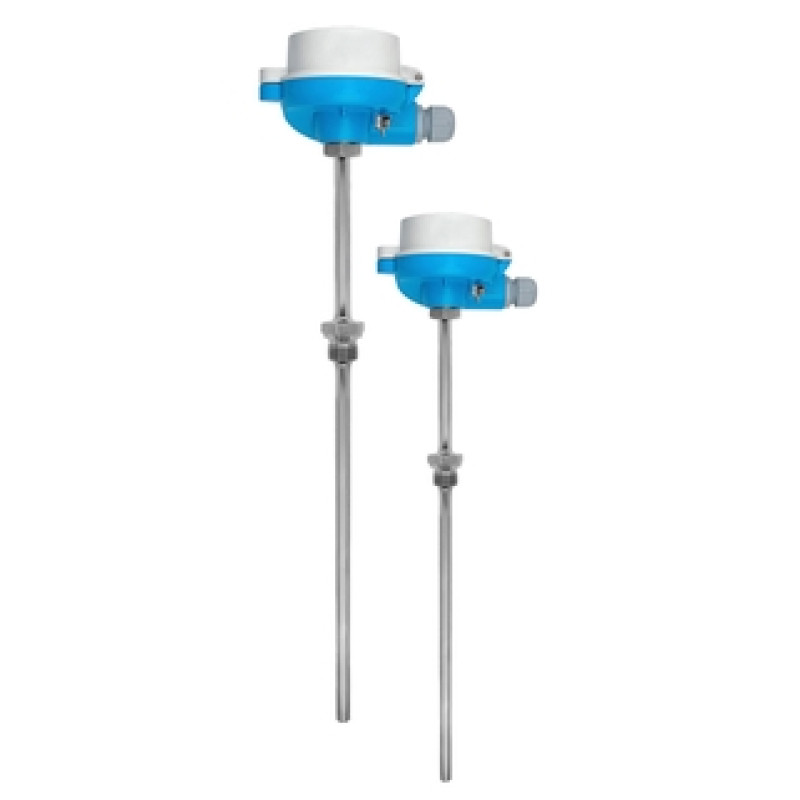

TST90 Modular RTD thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  modular temperature assembly (paired)
  threaded process connection
  with neck
  incl. thermowell / protection tube (metal)

• Thermowell / protection tube

  welded protection tube

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  9,0 mm (0,35'')

• Max. immersion length on request

  up to 4.000,00 mm (157,48'')

• Material protection tube/ thermowell

  1.4571 (316Ti)

• Optional coating

  Not defined

• Process connection

  male thread:
  G1/2"

• Tip shape

  straight
  tapered

• Surface roughness Ra

  Not defined

• Operating temperature range

  PT 100:
  -40 °C …120 °C
  (-40 °F …248 °F)

• Max. process pressure (static)

  at 20 °C: 50 bar (725 psi)

• Accuracy

  +/- 0.05 K (refering to delta-T)

• Response time

  depending on configuration
  t50 = 10 s
  t90 = 31 s

• Integration head transmitter

  no

The thermometer is mainly used in the chemical industry but also finds its use in other branches. The device is used for high-precision measurement of temperature
differences with matched sensor pairs. A variety of dimensions offers flexible application possibilities.

• Universally usable for thermal energy measurements

• Measuring range: -200 to +600 °C (-328 to 1112 °F)

• Sensors in matched pairs within the range:

  0 to 120 °C (±0.05 K)

  –40 to 0 °C (±0.1 K)

• Protection class: up to IP68

• Fast replaceability of the insert

• High degree of insert compatibility and design as per DIN 43772

• Fast response time with reduced tip
