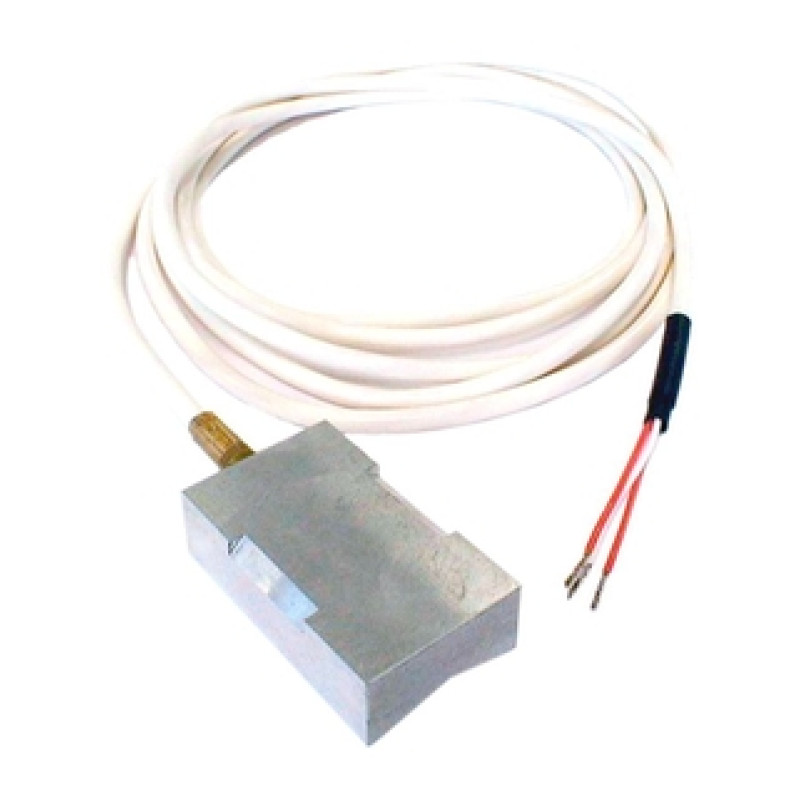

TST602 RTD thermometer, surface measurement

Suitable for the temperature measurement of pipe surfaces or container walls

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  cable probe
  suitable for high process pressures
  surface mounting

• Thermowell / protection tube

  without (not intended to use with thermowell)

• Insert / probe

  Not defined

• Max. immersion length on request

  up to 10.000,00 mm (393,70'')

• Process connection

  surface mounting

• Operating temperature range

  PT 100:
  -20 °C …200 °C
  (-4 °F ...392 °F)

• Max. process pressure (static)

  at 20 °C: 500 bar (7.252 psi)

• Accuracy

  class A acc. to IEC 60751
  class B acc. to IEC 60751

• Response time

  depending on configuration

Simple, fast and retrofit installation directly on the pipe or container wall, independent from the process connection, leads to a wide choice of applications: Verifying other measurement devices or temporary temperature measurement without interrupting the process. It is specially designed for climatization and general application in building automation and heat exchangers.

TST602 RTD thermometer is a general purpose thermometer for surface measurements. It is suitable for application on flat surfaces or pipes and is specially designed for climatization and general application in building automation and heat exchangers.

• Suitable for high process pressures (no direct contact with the process)

• Field of application in heavy duty industrial processes
