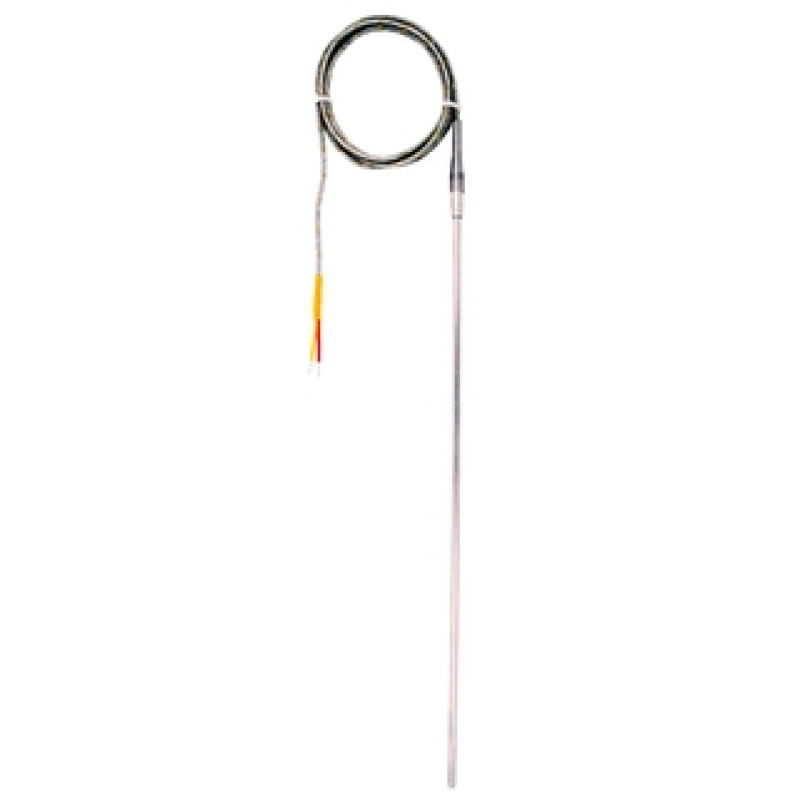

TSC310 Thermocouple sensor, cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

Previous: TC-Assembly S.A.Style TLSC2

• Measuring principle

  Thermocouple

• Characteristic / Application

  metric style
  cable probe
  suitable for hazardous areas
  process connection as compression fitting

• Thermowell / protection tube

  without (not intended to use with thermowell)

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  2,0 mm (0,08'')
  3,0 mm (0,12'')
  4,5 mm (0,18'')
  6,0 mm (0,24'')

• Max. immersion length on request

  up to 100.000,00 mm (3.937,01'')

• Material protection tube/ thermowell

  1.4401 (316)
  Alloy 600 (2.4816)

• Process connection

  compression fitting:
  G1/4
  G3/8
  G1/2
  G1/8
  NPT1/4
  NPT1/2
  NPT1/8
  NPT3/8

• Tip shape

  straight

• Operating temperature range

  Type K:
  max. 1.100 °C
  (max. 2.012 °F)
  Type J:
  max. 750 °C
  (max. 1.382 °F)

• Max. process pressure (static)

  at 20 °C: 25 bar (363 psi)

• Accuracy

  class 2 acc. to IEC 60584

• Response time

  t50 = 1 s
  t90 = 2 s

• Integration head transmitter

  no

• Ex - approvals

  ATEX II
  NEPSI
  IECEx
  UKCA

• Certification

  Gost Metrology

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.

The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.

• High flexibility through user-specific insertion lengths and variable process connections

• Fast response time

• Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)

• Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)

• NEPSI approval (Ex ia)
