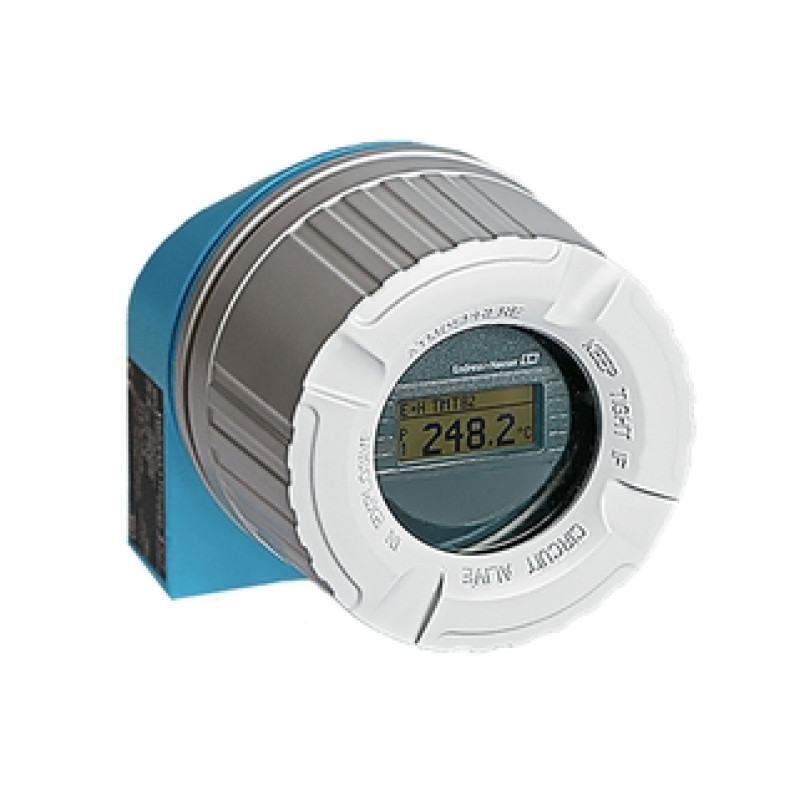

TMT85 iTEMP Temperature head transmitter

Transformation of sensor signals into standardized digital output signals for all industries

• Measuring principle

  Head transmitter

• Input

  2 x RTD, TC, Ohm, mV

• Output

  FOUNDATION Fieldbus H1

• Auxiliary power supply

  9...32 V DC (FOUNDATION Fieldbus)
  9...17,5 V DC (FISCO/FNICO)

• Communication

  FOUNDATION Fieldbus H1

• Installation

  Terminal head form B

• Accuracy

  (Pt100) <= 0,1 K
  (Pt100) <= 0,18 °F

• Galvanic isolation

  yes

• Certification

  ATEX II3G Ex ic IIC T6
  ATEX II2D Ex tb IIIC Db
  ATEX II1G Ex ia IIC T4/T5/T6
  ATEX II3G Ex nA IIC T6
  ATEX II3G Ex ic IIC T6
  ATEX II2D Ex tb IIIC Db
  ATEX II1G Ex ia IIC T4/T5/T6
  ATEX II3G Ex nA IIC T6
  ATEX II3D Ex tc IIIC Dc
  ATEX II1G Ex ia IIC T6, II3D
  ATEX II3G Ex nA IIC T6, II3D
  ATEX II2G Ex d T6, II2D Ex tb IIIC
  FM+CSA IS, NI I/1+2/ABCD
  CSA C/US General Purpose
  FM IS, NI I/1+2/ABCD
  CSA IS, NI I/1+2/ABCD
  CSA XP, NI, DIP I, II, III/1+2/A-G
  NEPSI Ex ia IIC T4/T5/T6
  TIIS Ex ia IIC T6
  NEPSI Ex nA IIC T4/T5/T6
  IECEx Ex ia IIC T4/T5/T6
  FM XP, NI, DIP I, II, III/1+2/A-G
  EAC Ex ia IIC T6 Ga
  EAC Ex d IIC T6 Gb
  IECEx Ex tb IIIC Db
  IECEx Ex d T6 Gb, Ex tb IIIC Db
  INMETRO Ex ia [ia Ga] IIC T6 Gb
  INMETRO Ex d T6 Gb, Ex tb IIIC Db
  NEPSI Ex d IIC T6 Gb
  UK II2D Ex tb IIIC Db
  UK II3D Ex tc IIIC Dc
  UK II1G Ex ia IIC T6 Ga, II3D Ex ia IIIC Dc
  UK II3G Ex nA IIC Gc, II3D Ex tc IIIC Dc
  UK II2G Ex db IIC T6 Gb, II2D Ex tb IIIC Db
  ATEX IECEx II1G Ex ia IIC T6 Ga
  FM+CSA IS, NI I/1+2/ABCD + ATEX IECEx II1G Ex ia IIC T6 Ga

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor-transmitter matching.

• 2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals

• The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)

• For the highest level of safety, availability and risk reduction

• Installation in flat-face terminal head as per DIN EN 50446

• Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

• Easy and standardized communication via FOUNDATION Fieldbus™ H1

• Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27

• Safe operation in hazardous areas thanks to international approvals such as FM IS, NI; CSA IS, NI; ATEX Ex ia, Ex nA for intrinsically safe installation in zone 1 and zone 2

• High accuracy through sensor-transmitter matching

• Reliable operation with sensor monitoring and device hardware fault recognition

• Several mounting versions and sensor connection combinations

• Rapid no-tools wiring due to optional spring terminal technology
