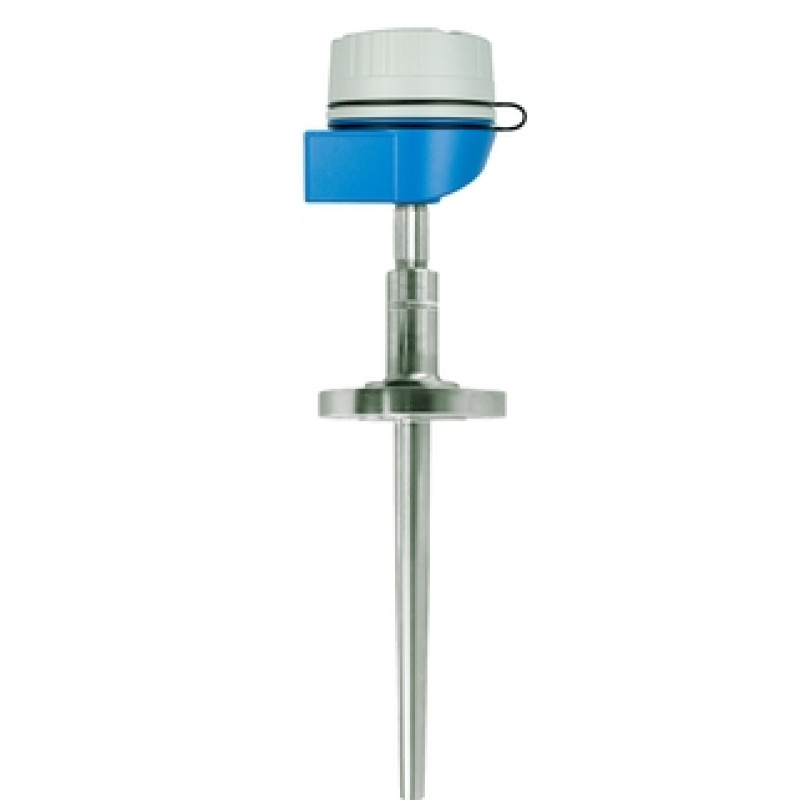

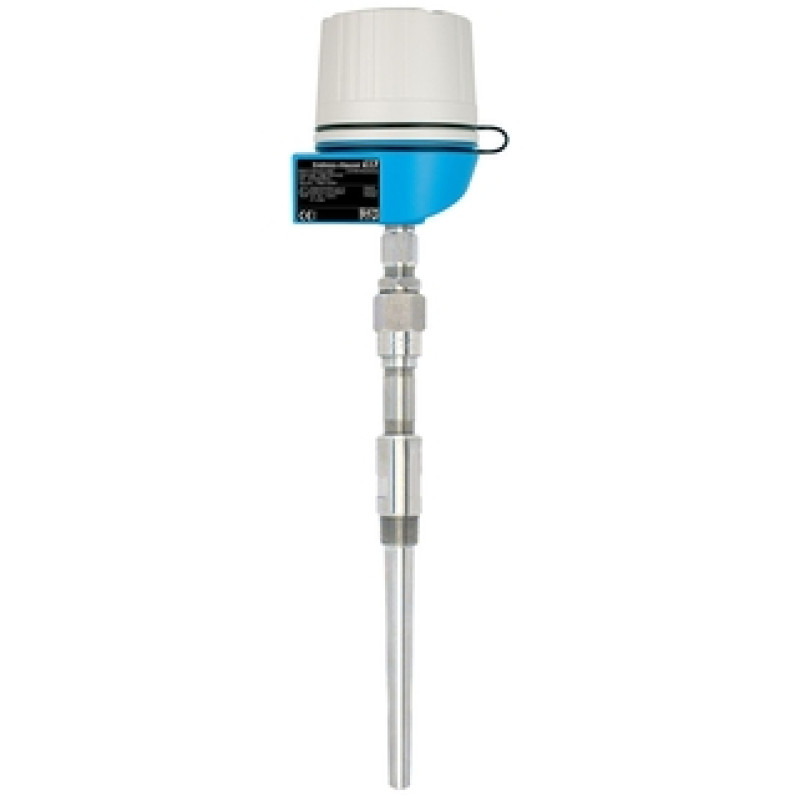

TC66 Explosion-proof TC Thermometer

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

Previous: TC70, TC75, Omnigrad S TSC266

• Measuring principle

  Thermocouple

• Characteristic / Application

  US style
  modular temperature assembly
  for heavy duty applications
  suitable for hazardous areas
  with neck
  incl. thermowell / protection tube (metal)

• Thermowell / protection tube

  bar stock (drilled)

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  20 mm (0,79")
  24 mm (0,94")
  25 mm (0,98")

• Max. immersion length on request

  up to 5.000,00 mm (196,85'')

• Material protection tube/ thermowell

  1.4401 (316)
  1.4404 (316L)
  1.4571 (316Ti)
  Alloy C276
  Alloy 400

• Optional coating

  Not defined

• Process connection

  male thread:
  NPT3/4"
  NPT1"
  flange:
  ASME 1" 150 RF (B16.5)
  ASME 1" 300 RF (B16.5)
  ASME 1" 600 RF (B16.5)
  ASME 1,5" 150 RF (B16.5)
  ASME 1,5" 300 RF (B16.5)
  ASME 1,5" 600 RF (B16.5)
  ASME 2" 300 RF (B16.5)
  ASME 2" 600 RF (B16.5)

• Tip shape

  straight
  tapered

• Surface roughness Ra

  1,6 μm (63,0 μin.)

• Operating temperature range

  Type K:
  max. 1.100 °C
  (max. 2.012 °F)
  Type J:
  max. 800 °C
  (max. 1.472 °F)

• Max. process pressure (static)

  at 20 °C: 500 bar (7.252 psi)

• Accuracy

  class 1 acc. to IEC 60584

• Response time

  depending on configuration
  t50 = 3 s
  t90 = 7 s

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II
  IECEx
  NEPSI
  EAC Ex
  Explosion proof
  UKCA

• Certification

  Gost Metrology
  SIL (transmitter only)

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

• Heavy duty applications

• Oil & Gas processing industry

• Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)

• Static pressure range up to 100 bar (1450 psi)

• Protection class: IP68

• Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)

• High degree of insert compatibility and design as per DIN 43772

• Extension neck to protect the head transmitter from overheating

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
