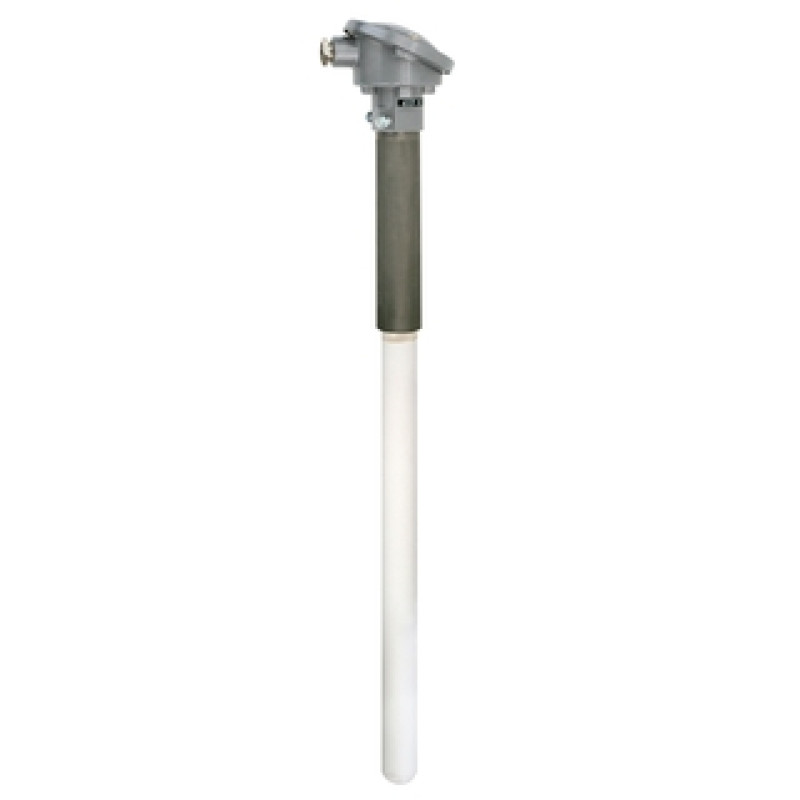

TAF12T High temperature TC thermometer

Applicable for ceramic baking ovens, brickworks, porcelain production and glass industries

• Measuring principle

  Thermocouple

• Characteristic / Application

  metric style
  modular temperature assembly
  high temperature (furnace)
  ncl. triple ceramic thermowell

• Thermowell / protection tube

  ceramic protection tube and 2x inner tube

• Insert / probe

  ceramic capilarry, rigid

• Outer diameter protection tube / Insert

  24,0 mm (0,94")
  26,0 mm (1,02")

• Max. immersion length on request

  up to 3.500,00 mm (137,80'')

• Material protection tube/ thermowell

  Ceramic (C530/C610/C799)

• Process connection

  compression fitting:
  G11/2"

• Tip shape

  straight

• Operating temperature range

  Type S:
  0 °C ...1.600 °C
  (32 °F ...2.912 °F)
  Type R:
  0 °C ...1.600 °C
  (32 °F ...2.912 °F)
  Type B:
  600 °C ...1.700 °C
  (1.112 °F ...3.092 °F)

• Max. process pressure (static)

  at 20 °C: 1 bar (15 psi)

• Accuracy

  class 2 acc. to IEC 60584

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Certification

  SIL (transmitter only)

Measuring points with extremely high process temperatures require these thermometers with ceramic thermowells and special metal thermocouples, such as platinum and rhodium. The thermowell as well as the intermediate and internal sheath of ceramic materials protects from mechanical and chemical damages in the process and increases the life span of the sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

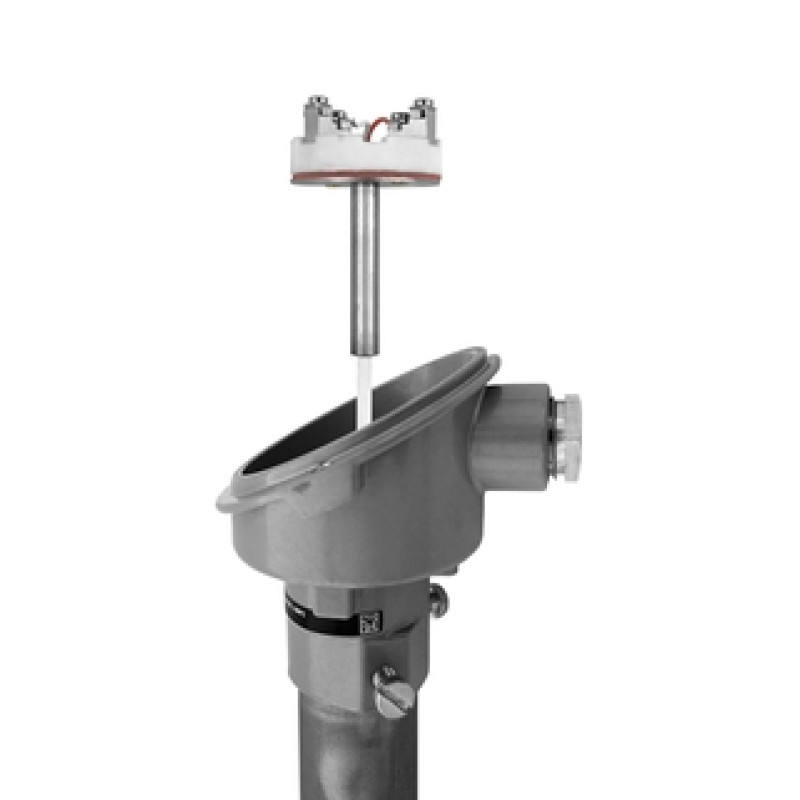

• The TAF12T are assemblies with triple ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.

• Process temperatures: up to +1700 °C (+3092 °F)

• Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

• Long term stable measurement due to sensor protection with non-porous materials

• Flexible product selection by modular design

• Optimized life cycle costs by means of replaceable spare parts
