NMT539 Prothermo Average temperature measurement

High precision average temperature measurement

Previous: Prothermo NMT535, NMT536, NMT538, RCV11, RCV12, NMT537

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  High precision average temperature measurement, with optional capacitance water bottom sensor

• Max. immersion length on request

  40 m (131.2 ft)

• Process connection

  JIS10K 50A RF
  ASME 2" 150 lb RF
  DN50 PN10 RF
  JPI 2" 150 lb RF

• Operating temperature range

  Standard:
  -40 °C...100 °C
  Optional:
  -55 °C...235 °C
  Water Bottom spec.:
  -40 °C...100 °C
  Cyrogenic:
  -170 °C...60 °C

• Max. process pressure (static)

  0 bar...0.5 bar
  (0 psi...7.25 psi)

• Accuracy

  +/- 0.1 °C

• Ex - approvals

  ATEX, FM, CSA, IEC Ex, TIIS, NEPSI

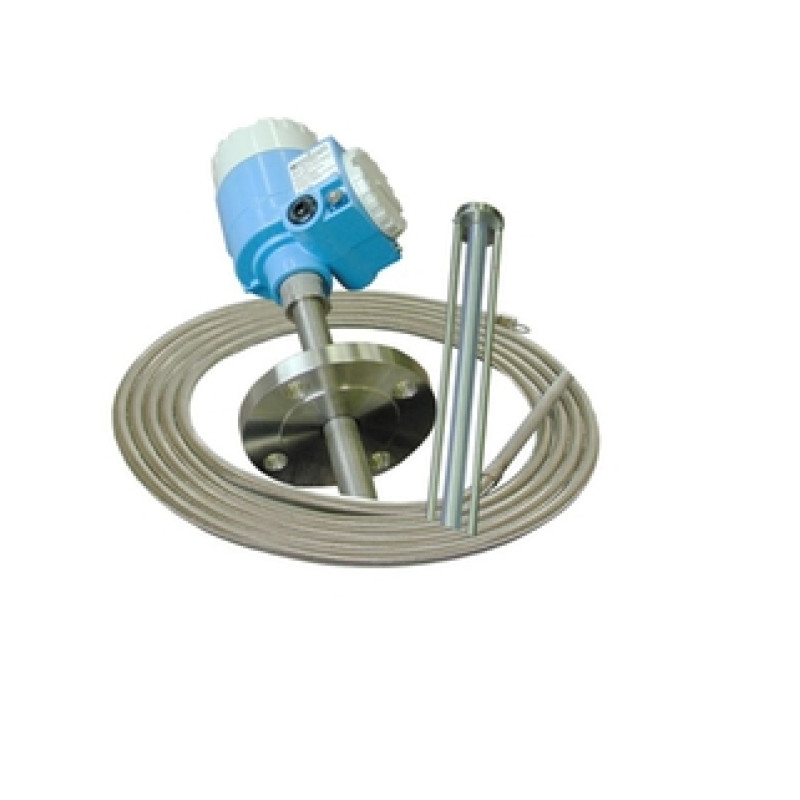

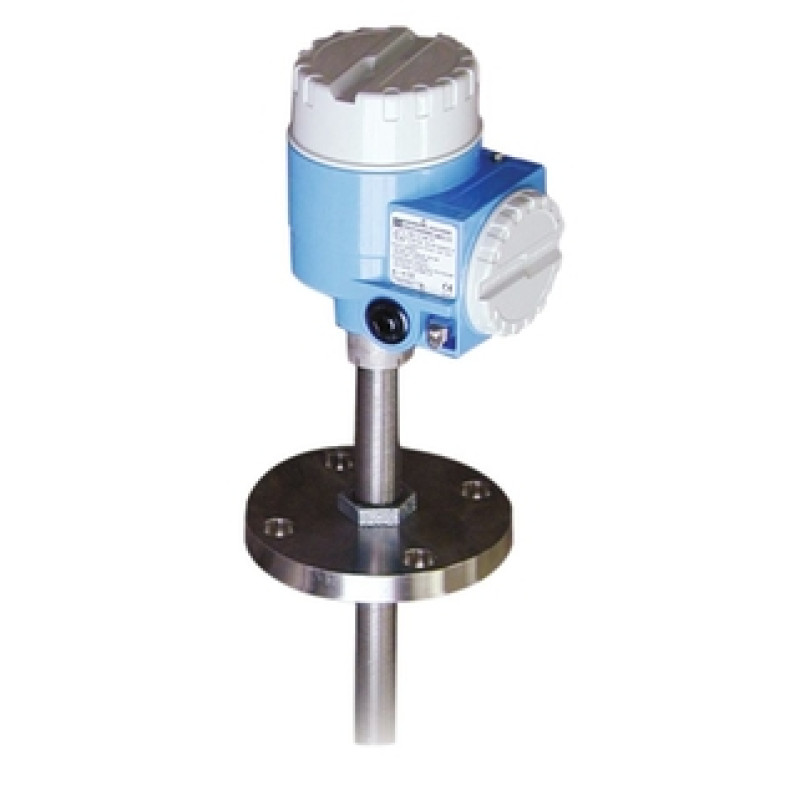

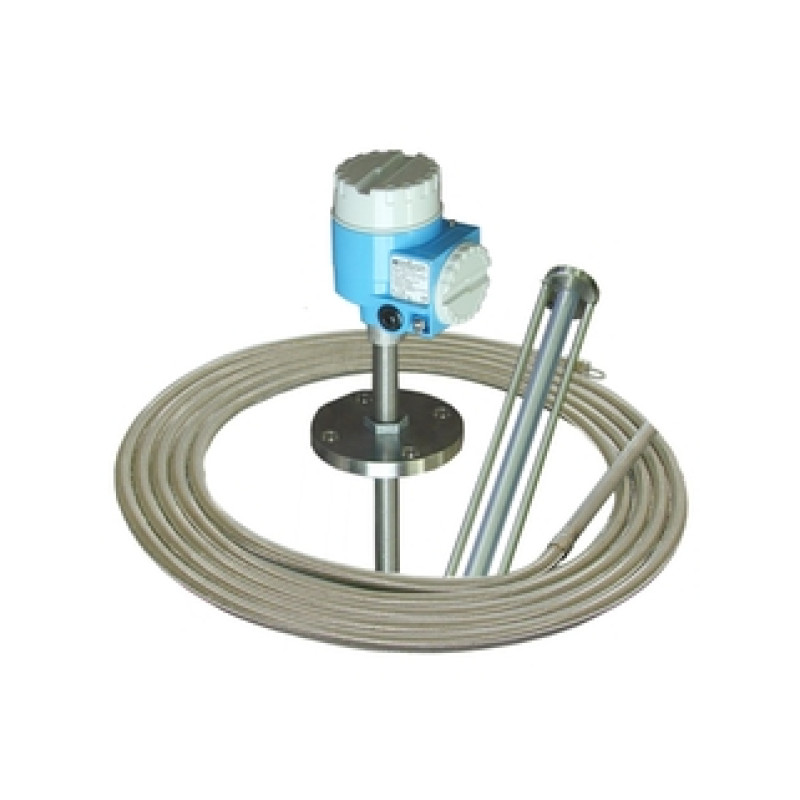

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

For precision average temperature and water bottom measurement.

• Process connection: Flanges

• Temperature: -40 to +100°C (-40 to +212°F)

• Measuring distance: 40m (131.2ft)

• Accuracy: ± 0.1°C

• International explosion protection certificates

• Intrinsically safe device allowing for the safest electrical configuration possible

• Available in four different versions based on customer requirements:
  Converter only
  Converter and temperature probe
  Converter and water bottom probe
  Converter, temperature and water bottom probe

• Converter is compatible with various element types in third party manufacturer temperature probes

• Compatible with Endress+Hauser's user friendly FieldCare

• Variety of process connections and cable entries available to meet worldwide classifications

• High reliability and easy installation

• Maintenance free
