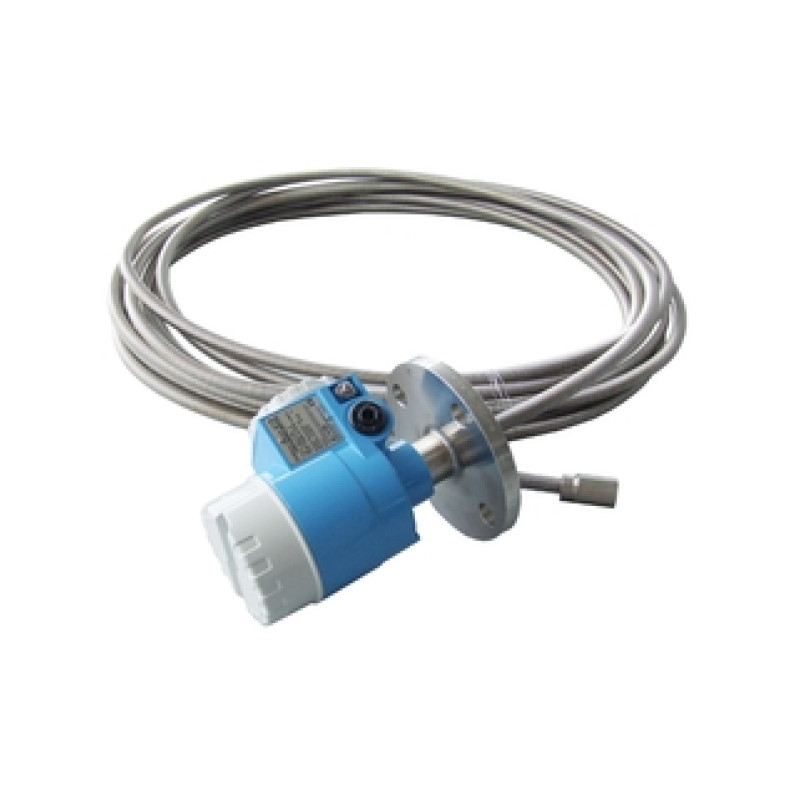

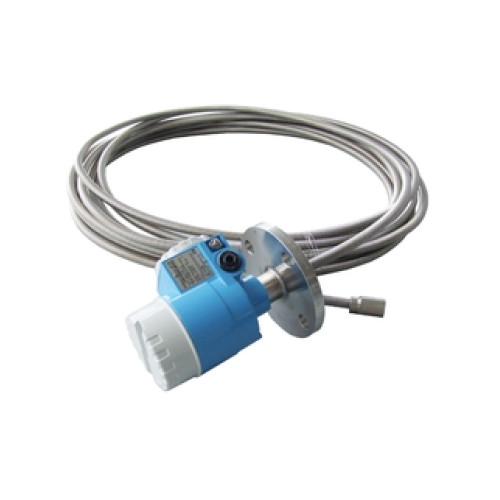

NMT532 Prothermo Average temperature measurement

High precision average temperature measurement

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  High precision average temperature measurement

• Max. immersion length on request

  18.5 m (60.6 ft)

• Process connection

  DN50 PN 10 RF
  ASME 2"150 lb RF

• Operating temperature range

  -20 °C...100 °C
  (-4 °F...212 °F)

• Max. process pressure (static)

  0 bar...0.5 bar
  (0 psi...7.25 psi)

• Accuracy

  +/- 0.1 °C

• Ex - approvals

  ATEX, FM, CSA, IEC Ex, NEPSI

The Prothermo NMT532 is an intrinsically safe multi-signal converter with precision average temperature sensor for inventory control. It is a highly capable solution for a variety of tank gauging applications and provides constant average temperature data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot radar tank gauge.

For precision average temperature measurement.

• Process connections: Flanges

• Temperature: -20 to +100°C (-4 to +212°F)

• Measuring distance: 18.5m (60.6ft)

• Accuracy: ± 0.1°C

• International explosion protection certificates

• High accuracy

• Intrinsically safe device allowing for the safest electrical configuration possible

• Compatible with FieldCare

• Simple and economical

• Compact size and weight

• High reliability and easy installation

• Maintenance free
