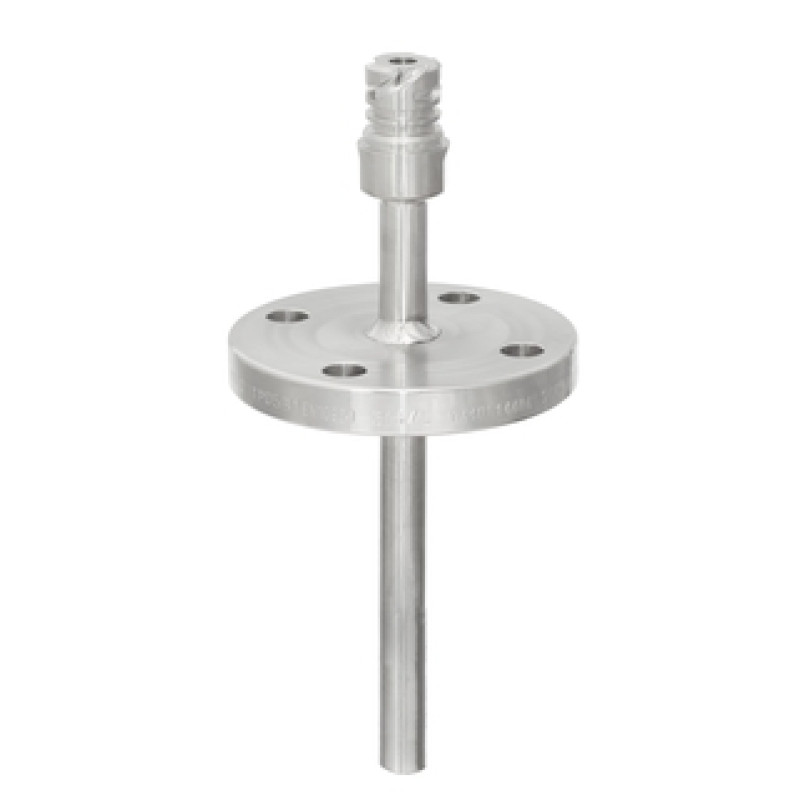

Welded thermowell for a variety of industrial applications
Previous: Thermowell TA540, Thermowell TA541, Thermowell TA535, Thermowell S.A.Style TLSW1, Thermowell TW12, Thermowell TW13, Thermowell TW10, Thermowell TW11
-
Measuring principle
Fabricated Thermowell
-
Characteristic / Application
metric style
according to DIN 43772
process connection threaded, flanged, compression fitting
with neck -
Head connection
external thread:
M24 x 1.5, 1/2" NPT, G1/2
Female thread:
M20 x 1.5, 1/2" NPT, G1/2
QuickNeck -
Maximum standard immersion length
4.500 mm (177")
-
Max. immersion length on request
4.500 mm (177")
-
Process connection
Thread:
G3/8", G1/2", G3/4", G1"
NPT1/2", NPT3/4", NPT 1"
M18x1.5, M20x1.5, M27x2, M33x2
R1/2", R3/4"
Cap-nut:
M20x1.5, G1/2", G3/4"
Compression fitting:
NPT1/2", G1/2", G1"
Flansche:
DN15 PN40 B1, C
DN25 PN20, PN40, PN100 B1, B2, C
DN40 PN40 B1
DN50 PN40 B1
ASME 1" 150 RF
ASME 1" 300 RF
ASME 1 1/2" 150 RF
ASME 2" 150 RF
ASME 2" 300 RF -
Thermowell root diameter
9x1,25 mm
11x2 mm
12x2,5 mm
14x2 mm
16x3,5 mm
1/4" SCH80
1/2" SCH80
1/2" SCH40 -
Medium contact material
316 (1.4401)
316L (1.4404)
316Ti (1.4571)
Alloy 600 (2.4816)
Alloy C276 (2.4819)
Alloy 446 (1.4749)
Alloy 321 (1.4541)
Sheath PTFE
Sheath Tantal -
Wetted part finishing (Ra)
< 1.6 μm (63.00 μin)
-
Tip shape
straight
reduced
tapered
optimized for quick response times -
Temperature range
-200...1.100 °C (-328...2.012 °F)
-
Max. process pressure (static)
Depending on configuration up to 100 bar
-
Max. process pressure at 400 °C
Depending on configuration
This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.
-
Protects the temperature sensor against physical and chemical stress
-
High robustness for challenging process conditions
-
Pressure range: up to 100 bar (1450 psi)
-
For use in pipes, containers or tanks
-
Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point
-
Modular configuration according to DIN 43772
-
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration of the insert
-
Extension, immersion length and total length can be chosen according to process requirements
-
Wide choice of dimensions, materials and process connections available
-
Specially designed tip for fast response times
