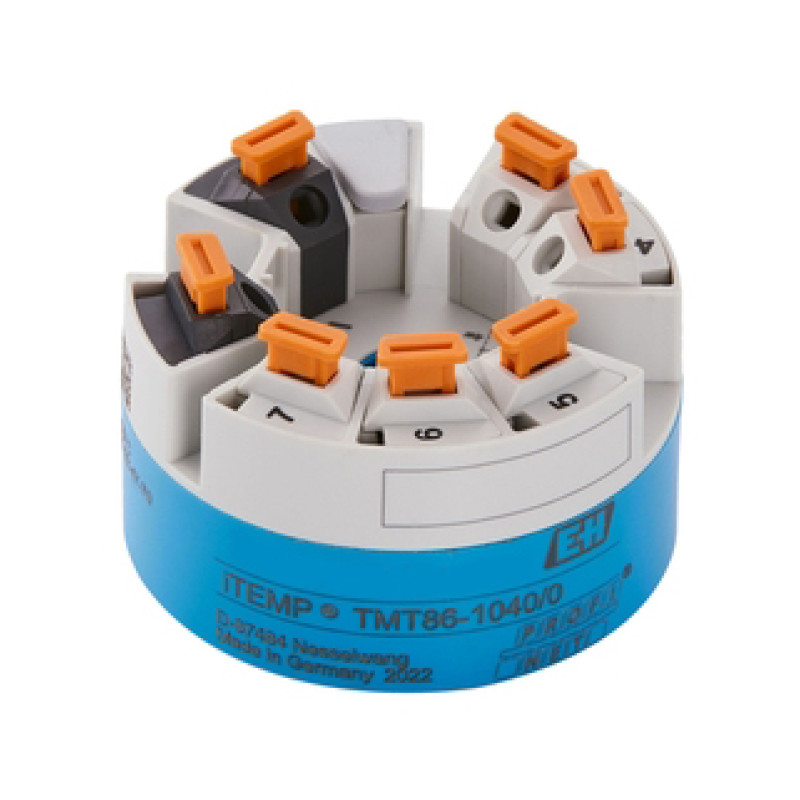

TMT86 iTEMP head transmitter with Ethernet-APL

PLEASE ASK FOR PRICE!

Ethernet-APL head temperature transmitter for the use in hazardous areas

• Measuring principle

  Head transmitter

• Input

  2 x RTD, TC, Ohm, mV

• Output

  PROFINET

• Auxiliary power supply

  9,6…15 V DC (Ethernet-APL)
  20…30 V DC (SPE)

• Communication

  PROFINET with Ethernet-APL

• Installation

  Terminal head form B / in field

• Accuracy

  (Pt100, -50...200 °C) <= 0,1 K
  (Pt100, -58...392 °F) <= 0,18 °F

• Galvanic isolation

  yes

• Certification

  ATEX II1G Ex ia IIC T6
  ATEX II3G Ex ic IIC T6 Gc
  ATEX II3D Ex tc IIIC Dc
  ATEX II2G Ex ia IIC T6, II3D Ex ia IIIC Dc
  ATEX II3G Ex ec IIC T6, II3D
  ATEX II2G Ex db IIC T6 Gb, II2D Ex tb IIIC Db
  CSA C/US General Purpose
  CSA C/US IS I/1/A-D, AEx/Ex ia IIC, NI I/2/A-D, AEx/Ex ec IIC Gc
  CSA XP, NI, DIP I, II, III/1+2/A-G
  EAC Ex ia IIC T6 Ga
  EAC Ex d IIC T6 Gb
  IECEx Ex d T6 Gb, Ex tb IIIC Db
  KC Ex ia IIC T6 Ga
  KC Ex db IIC T6 Gb
  INMETRO Ex ia IIC T6 Ga
  INMETRO Ex d T6 Gb, Ex tb IIIC Db
  NEPSI Ex ia IIC T4/T5/T6
  UK Ex ia IIC T6 Ga
  UK Ex d IIC T6 Gb
  ATEX IECEx II1G Ex ia IIC T6 Ga
  ATEX IECEx II2D Ex tb IIIC Db

The iTEMP TMT86 is a reliable, intelligent and future proof dual-channel Ethernet-APL PROFINET temperature head transmitter for thermometers with terminal head form B and is suitable for use in hazardous areas. ​Beneficial diagnostic functions like corrosion monitoring of the sensor wires help to improve the plant up-time. The embedded webserver and the up-to-date FDI package simplifies the device configuration and integration.

• Ethernet-APL: 2-wire Ethernet IEEE 802.3cg 10BASE-T1L

• Temperature measurement with two independent universal inputs (RTD, Ω, TC, mV)

• System integration with PROFINET®

• Installation in terminal head form B (flat face) as per DIN EN 50446

• Optional: installation in field housing for Ex d applications

• Reliability, long-term stability, high precision and advanced diagnostic function in critical processes

• Digital communication down to the field level, even in explosive atmospheres

• Easy and standardized system integration via PROFINET® Profile 4

• Integrated web server offers simplicity during commissioning and maintenance

• High accuracy of measuring point through sensor-transmitter matching

• Reliable operation with sensor monitoring and device hardware fault recognition

• Fast and tool-free wiring thanks to push-in terminal technology, optional

• Attachable measured value display, optional
