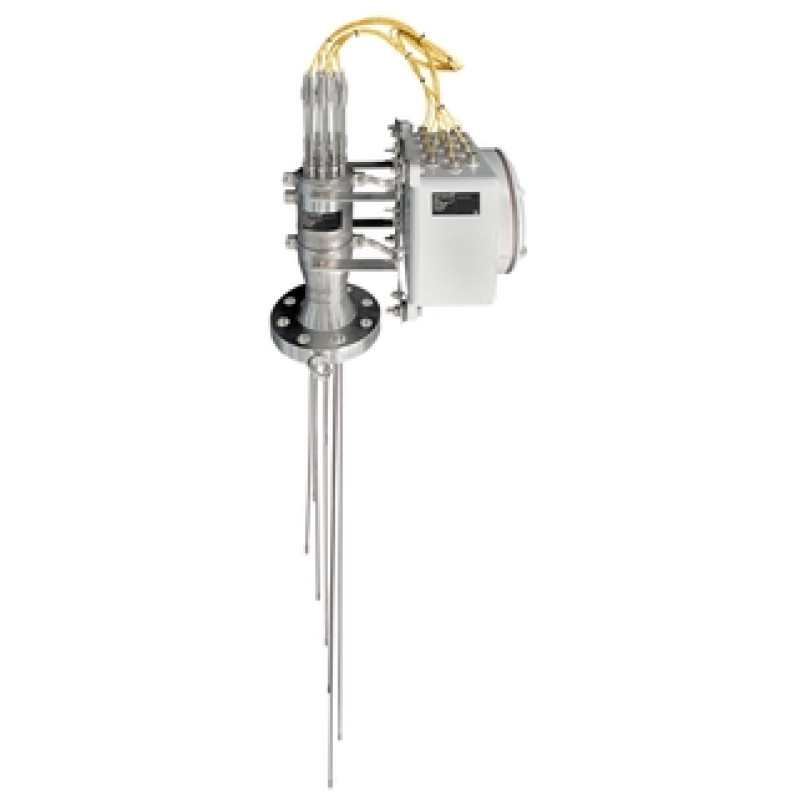

TMS02 iTHERM MultiSens Flex Multipoint

PLEASE ASK FOR PRICE!

Modular direct contact TC and RTD multipoint thermometer with secondary process barrier

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  easy-to-use
  suitable for hazardous areas
  flanged process connection
  light chemical processes
  3D sensors distributions
  modular design
  replaceable sensors during shutdown
  diagnostic chamber

• Thermowell / protection tube

  without (for direct contact sensors type)
  with (for replaceable sensors)
  with (for increased mechanical protection)
  Multi-thermowells, each one dedicated to a sensor

• Insert / probe

  mineral insulated (MI), flexible
  mineral insulated (MI), flexible, with its own thermowell

• Outer diameter protection tube / Insert

  6,0 mm (0,24'')
  8,0 mm (0,31")
  10,29 mm (1/8")

• Max. immersion length on request

  up to 30.000,00 mm (1181'')

• Material protection tube/ thermowell

  1.4401 (316)
  1.4435 (316L)
  1.4541 (321)
  1.4550 (347)
  Alloy 600 (2.4816)

• Process connection

  flange:
  2" ASME/ANSI B16.5 150
  ...600
  3" ASME/ANSI B16.5 150
  ..600
  4" ASME/ANSI B16.5 150
  ...600
  6" ASME/ANSI B16.5 150
  ...600
  8" ASME/ANSI B16.5 150
  ...600
  DN80 EN/DIN 1092.1 PN10
  ...PN100
  DN100 EN/DIN 1092.1 PN10
  ...PN100
  DN125 EN/DIN 1092.1 PN10
  ...PN100
  DN150 EN/DIN 1092.1 PN10
  ...PN100
  DN200 EN/DIN 1092.1 PN10
  ...PN100

• Tip shape

  straight
  reinforced
  easy-fix

• Operating temperature range

  Type K:
  max. 1.150 °C
  (max. 2.102 °F)
  Type J:
  max. 720 °C
  (max. 1.328 °F)
  Type N:
  max. 1.100 °C
  (max. 2.012 °F)
  Pt100 WW; 3mm; 316L; -200...600oC
  Pt100 WW; 6mm; 316L; -200...600oC
  Pt100 TF; 3mm; 316L; -50…400oC
  Pt100 TF; 6mm; 316L; -50…400oC
  Pt100 StrongSens; 6mm; 316L; -50…500oC

• Max. process pressure (static)

  at 20 °C: 200 bar (2900 psi)

• Accuracy

  class 2 acc. to IEC 60584
  ASTM E230 and ANSI MC 96.1
  IEC/Class A
  IEC/Class AA

• Response time

  depending on configuration:
  TC:
  t50 = 2 s
  t90 = 5 s
  RTD:
  t50 = 0,8s
  t90 = 2s

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX
  IECEX
  UL
  FM
  CSA
  NEPSI
  EAC
  UK CA
  CCC Ex ia IIC T1...T6 Ga

• Certification

  SIL (transmitter only)

The iTHERM TMS02 MultiSens Flex can be customized for various applications: Bendable into a 3D layout, it provides a complete temperature profile using only a single process connection. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available with either TC/RTD technology or with our iTHERM StrongSens and features an advanced diagnostics chamber for additional safety.

• Petrochemical industry

• Heavy Chemical processes

• Infinite layouts of 3D sensors distribution for any desired process monitoring configuration

• High degree of customization thanks to a modular product design for easy installation, process integration and maintenance

• High degree of insert process compatibility as per standard IEC 60584, ASTM E230 and IEC 60751

• On-board electronic heat protection for highest product durability

• Compliance to different types of protection for use in hazardous locations for easy process integration

• Diagnostic chamber as secondary process barrier for additional safety, capable of pressure monitoring for predictive maintenance through advanced diagnostics
