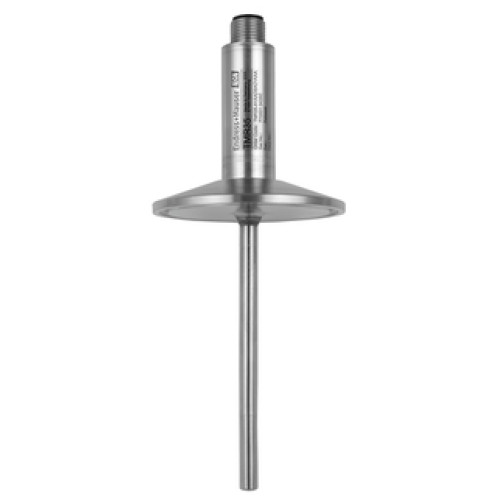

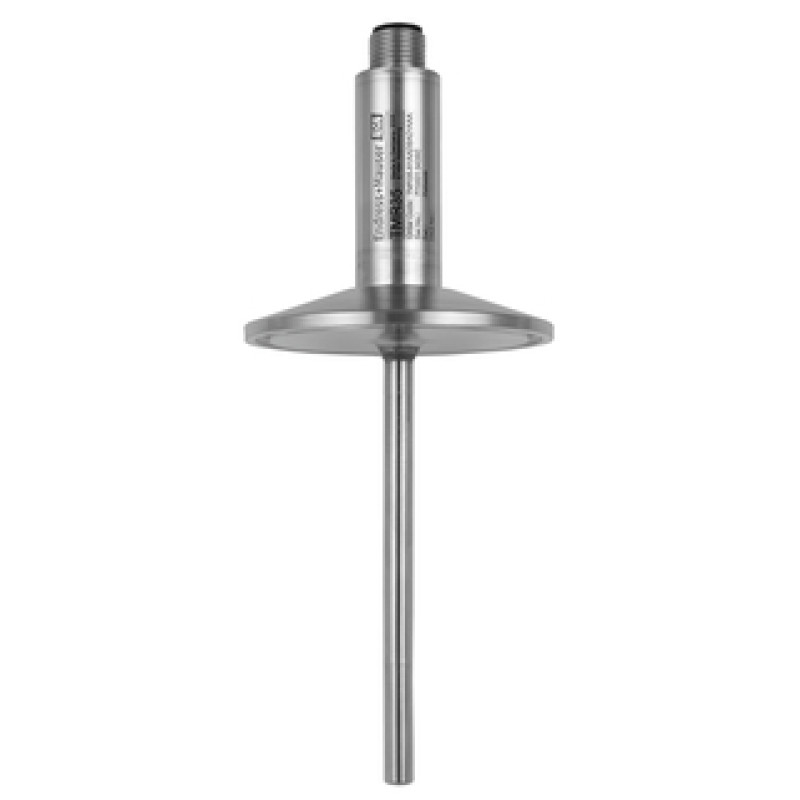

TMR35 Easytemp Hygienic compact thermometer

Compact, fast and precise for the measurement of process temperatures in hygienic applications

Previous: Omnigrad T TR480, U.S. Style Easytemp TSM470F, U.S. Style Easytemp TSM470P, Omnigrad T TSM480

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  compact temperature probe
  fast response time
  hygienic design
  hygienic process connection
  with or without neck

• Thermowell / protection tube

  without (not intended to be used with thermowell)
  to be used with thermowell
  incl. T-/ellbow thermowell

• Insert / probe

  pipe version, isolated wires, not flexible

• Outer diameter protection tube / Insert

  3,0 mm (0,12'')
  6,0 mm (0,24'')

• Max. immersion length on request

  up to 600,00 mm (23,62'')

• Material protection tube/ thermowell

  1.4404 (316L)

• Process connection

  hygienic:
  conical sealing system G1/2" (metal)
  clamp connections acc. to ISO 2852 / DIN 32676
  screwed pipe joint acc. to DIN 11851
  Varivent

• Tip shape

  straight

• Surface roughness Ra

  0,4 μm (16 μin.)
  0,8 μm (32 μin.)

• Operating temperature range

  PT 100:
  -50 °C ...200 °C
  (-58 °F ...392 °F)

• Max. process pressure (static)

  at 20 °C: 100 bar (1.450 psi)

• Accuracy

  class A acc. to IEC 60751

• Response time

  t50 = 1 s
  t90 = 2 s

• Integration head transmitter

  no (4…20mA Signal)

• Certification

  3A
  Marine approval
  UL 3111-1

With cost efficiency, optimal use of space, reliable operation, easy commissioning and hygienic design the TMR35 fulfills all the requirements in the Food & Beverage as well as in the Life Science industries. A variety of hygienic process connections leads to a high flexibility.

The Easytemp TMR35 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR35 with process connections for hygienic applications.

• Small, compact design made entirely of stainless steel

• Extremely short response times

• Highly accurate even with short insertion lengths

• 4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output

• Configuration and visualization with ReadWin^® 2000 PC operating software, which is free of charge

• Breakdown information in event of sensor break or sensor short-circuit, adjustable as per NAMUR NE43

• Hygienic compatible design with 3-A marking and EHEDG certification;
  Marine approval
