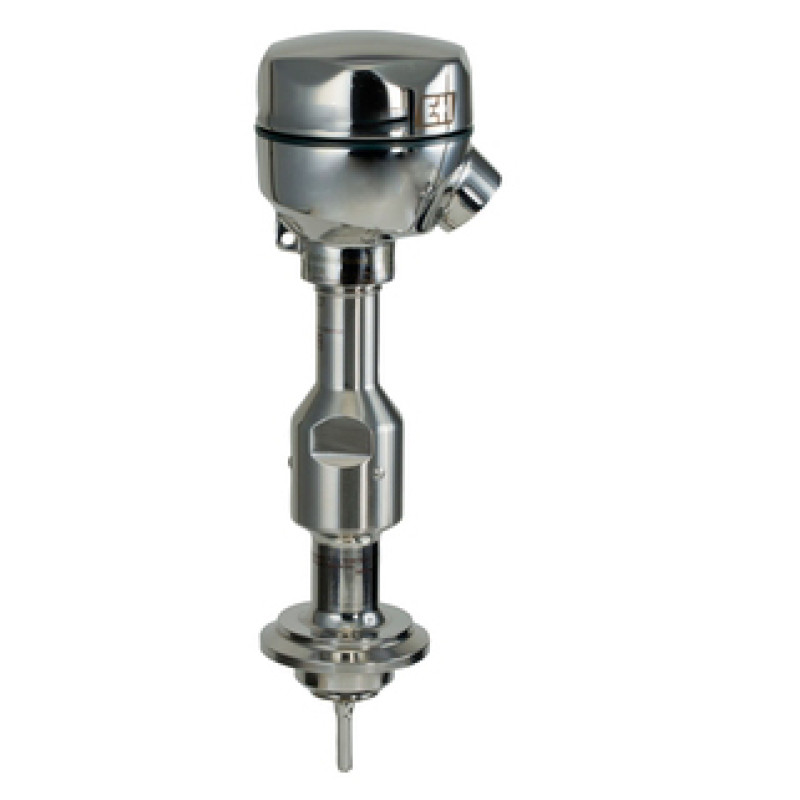

TM412 iTHERM Imperial Hygienic Thermometer, US style

For use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

Previous: U.S. Style RTD-Assembly TH17, U.S. Style RTD-Assembly TH18, U.S. Style RTD-Assembly TH27

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  imperial style
  modular temperature assembly
  hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA)
  hygienic process connections
  with neck
  suitable for hazardous areas
  incl. protection tube
  QuickSens for fastest response time
  StrongSens for most robust design
  QuickNeck for easy and cost saving recalibration

• Thermowell / protection tube

  without
  incl. thermowell
  incl. T-/ellbow thermowell

• Insert / probe

  mineral insulated (MI), flexible
  pipe version, isolated wires, not flexible

• Outer diameter protection tube / Insert

  1/4'' (6,35 mm)
  3/8'' (9,53 mm)
  1/2" (12,7 mm)

• Max. immersion length on request

  48"

• Material protection tube/ thermowell

  316L

• Process connection

  Weld-in adapter
  Tri-clamp
  Clamp-connections according to ISO2852
  G3/4" Liquiphant
  G1" Liquiphant
  Varivent
  T- and corner pieces

• Tip shape

  straight
  reduced

• Surface roughness Ra

  30 μin (0,76 μm)
  15 μin (0,38 μm )
  15 μin (0,38 μm) electropolished

• Operating temperature range

  PT100 WW:
  -200 °C … 600 °C
  (-328 °F … 1.112 °F)
  StrongSens:
  -50 °C … 500 °C
  (-58 °F … 932 °F)
  QuickSens:
  -50 °C … 200 °C
  (-58 °F … 392 °F)
  PT100 TF:
  -50 °C … 200 °C
  (-58 °F … 392 °F)

• Max. process pressure (static)

  at 20 °C: 40 bar (580 psi)

• Accuracy

  class B acc. to IEC 60751
  class A acc. to IEC 60751
  class AA acc. to IEC 60751

• Response time

  depending on configuration
  QuickSens: t90 = 1,5 s
  StrongSens: t90 = 9,5 s

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II 3 G Ex nA IIC T6, II3D
  CSA General Purpose, CSA C/US
  CSA C/US IS, NI I/1+2/A-D
  CSA NI I/2/A-D
  CSA IS, NI I/1+2/A-D
  FM NI I / 2/A-D
  FM IS, NI I/1+2/A-D
  ATEX IECEx II1G Ex ia IIC T6 Ga
  FM+CSA IS, NI I/1+2/A-D
  ATEX IECEx II1/2D Ex tb IIIC Da/Db
  ATEX IECEx II1/2G Ex ia IIC T6 Ga/Gb
  ATEX IECEx II1/2D Ex ia IIIC Da/Db

• Certification

  SIL (transmitter only)

It has been designed to meet the requirements of the Food & Beverages and Life Sciences industries and complies with the highest quality standards. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. It offers many technical innovations: iTHERM QuickSens, StrongSens or QuickNeck. This leads to distinctive reduction of maintenance costs, improved product quality, process efficiency and safety.

• Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

• Measuring range: –200 to +600 °C (–28 to +1 112 °F)

• Pressure range up to 40 bar (580 psi)

• Protection class: up to IP69K

• User-friendly and reliable from product selection to maintenance

• iTHERM inserts: globally unique, fully-automated production. Full traceability and consistently high product quality for reliable measured values

• iTHERM QuickSens: fastest response times (t90s: 1.5 s) for optimum process control

• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

• iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration

• iTHERM TA30R: 316L terminal head for easier handling and lower installation and maintenance costs, and with highest IP69K rating

• International certification: explosion protection e.g. ATEX/IECEx/FM/CSA and in compliance with hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
